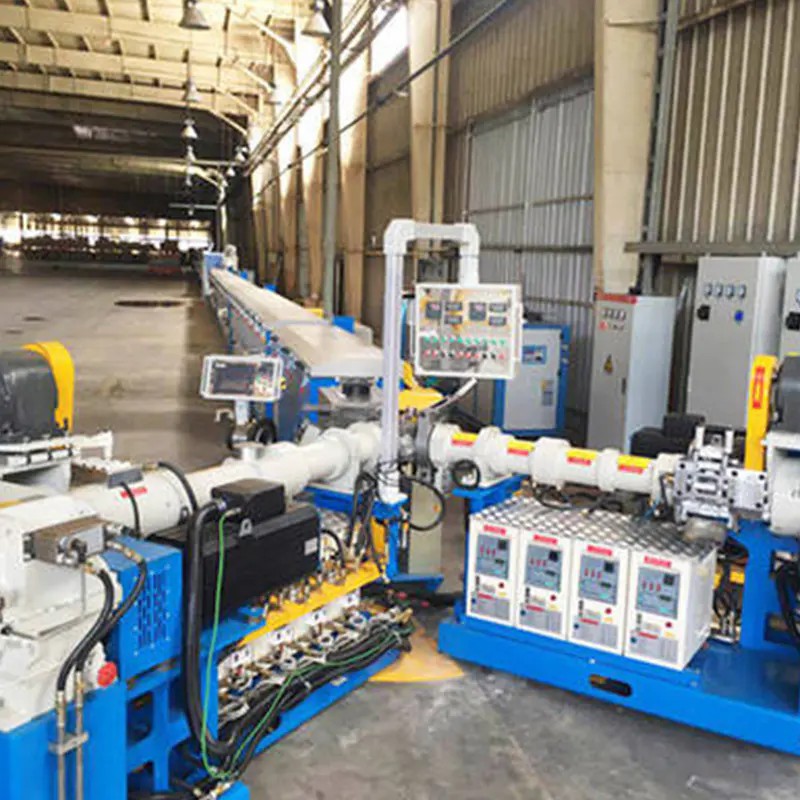

Common Components of a Rubber Extruder Machine

A rubber extruder is a complex piece of industrial machinery designed to process and shape raw rubber compounds into continuous profiles. Its operation relies on the precise interaction of several key components. Fundamentally, these machines share a common architecture.

The central component is the extruder barrel, a robust cylindrical housing that contains the processing mechanism. Inside this barrel rotates the screw, a critical part whose design—featuring sections for feeding, compression, and metering—determines the machine's processing efficiency and output consistency. The barrel is typically equipped with heating and cooling systems, often in the form of electric heater bands and circulating liquid channels, to maintain the precise temperature required for the rubber compound. At one end, the feed hopper allows for the introduction of rubber stock, which can be in strip, pellet, or granule form.

The shaped output is created by the die, a custom-machined plate attached to the front of the barrel, which gives the extruded rubber its specific cross-sectional profile. The thrust bearing assembly absorbs the significant axial force generated by the rotating screw. A drive system, consisting of an electric motor and a gear reducer, provides the necessary torque to rotate the screw at controlled speeds. Finally, a control panel houses the instrumentation and systems for regulating temperature, screw speed, and other operational parameters, allowing for coordinated machine function.

What Rubber Extruder Machines Are Commonly Used For

Rubber extruders are fundamental to manufacturing a wide array of rubber products, serving as the primary method for creating continuous, linear shapes with defined cross-sections.

Profile and Sealing Section Manufacturing

A predominant application is the production of solid and sponge rubber profiles. These include door and window seals for the automotive and construction industries, gaskets, and decorative trims. The extruder can compound, homogenize, and precisely shape these complex profiles in a continuous length, which is then vulcanized in a subsequent process.

Tire Production

In the tire industry, extruders are indispensable for creating various components. Separate extruders are used to produce the tread, the layer that contacts the road, as well as sidewalls, inner liners, and apex strips. These extruded components are then assembled in a precise order on a tire-building drum to form the "green" tire before curing.

Hose and Tubing Fabrication

For creating rubber hoses and tubes—used in automotive, industrial, and domestic applications—extruders are employed to form the inner tube layer. More advanced setups use cross-head dies to simultaneously apply rubber cover layers over reinforcement materials like braided textile or metal wire.

Pre-Curing for Other Processes

Extrusion is also used as an intermediate step. For example, rubber can be extruded into a simple sheet or blank that is then molded into a final product, such as a gasket or a shoe sole, using compression or injection molding. This performs the material, improving efficiency and reducing waste in the molding press.

Precautions for Using a Rubber Extruder Machine

Operating a rubber extruder requires strict adherence to safety and procedural guidelines to prevent accidents, ensure product quality, and protect the equipment. Precautions span mechanical, thermal, and procedural domains.

Mechanical and Operational Safety

Before starting, personnel must ensure all guards for moving parts, especially the screw drive and gearbox, are securely in place. Loose clothing or jewelry should not be worn. The machine should never be started with material in the barrel or with a cold barrel and die, as this can cause pressure buildup and potential rupture. The screw should only be rotated when properly supported by the thrust bearing. When cleaning or changing the die, operators must ensure the barrel pressure is fully relieved and appropriate lockout/tagout procedures are followed to isolate energy sources.

Temperature Management

Temperature control is critical. Heaters should be activated well in advance to bring all barrel zones and the die to their prescribed set points before introducing rubber. Introducing cold compound into a hot barrel can cause sudden cooling and pressure spikes, while forcing compound through a cold die can bring about poor surface finish, dimensional instability, and potential damage. Cooling systems must be functional to prevent overheating, which can degrade the rubber compound.

Material and Process Monitoring

The rubber compound must be prepared and fed consistently. Inconsistent feedstock in size or composition can cause surging fluctuations in output and pressure, bringing about defective product. Operators must continuously monitor amperage (motor load) and pressure gauges; sustained readings above normal ranges indicate a blockage or improper processing conditions that require immediate adjustment. Furthermore, all personnel should be aware of the specific hazards of the materials being processed, including potential fume generation during heating, and use appropriate local exhaust ventilation and personal protective equipment such as heat-resistant gloves and safety glasses.
