Product Advantages
This production line is a high-end configuration model, equipped with a small-sized ultra-high temperature setting oven. It enables simultaneous extrusion of multiple products, coupled with in-line separation and winding, achieving high efficiency and energy saving.
1. Adopts precisely selected industrial waveguide tubes for efficient microwave conduction.
2. Custom cavity plates with low microwave absorption, enhancing utilization efficiency.
3. Microwave emission-compliant cavity design optimizes resonance modes and furnace-magnetron matching.
4. Multi-layer microwave leakage prevention (short-circuit ring + multi-section wave resistance + SiC) at inlet/outlet.
5. High-temp silicone-coated wires + wave-blocking device for effective door leakage prevention.
6. Laser-cut & folded iron frame, sleek and elegant in appearance.
7. Extended to 8m (based on 6.8m industry standard), combining hot air & microwave for ideal vulcanization speed; universal conveyor belt spare parts for easy production.
8. Stable microwave power control system; power redistribution upon single group failure to ensure consistent vulcanization quality.
| Model | Rubber Microwave Curing/Vulcanization Oven (UHF) |
| Effective Length | 8.9 - 10m |
| Heating | Natural gas (LNG/LPG), Euronorm compliant |
| Max Production Speed | Up to 40m/min |
| Max Shock Temp | Up to 500 °C |
| Max Microwave Power | Up to 12 kW |
| Equipped with high-speed hot air zone | |
| Independent roller & belt drive | |
| Energy-efficient operation mode | |
 |
|||

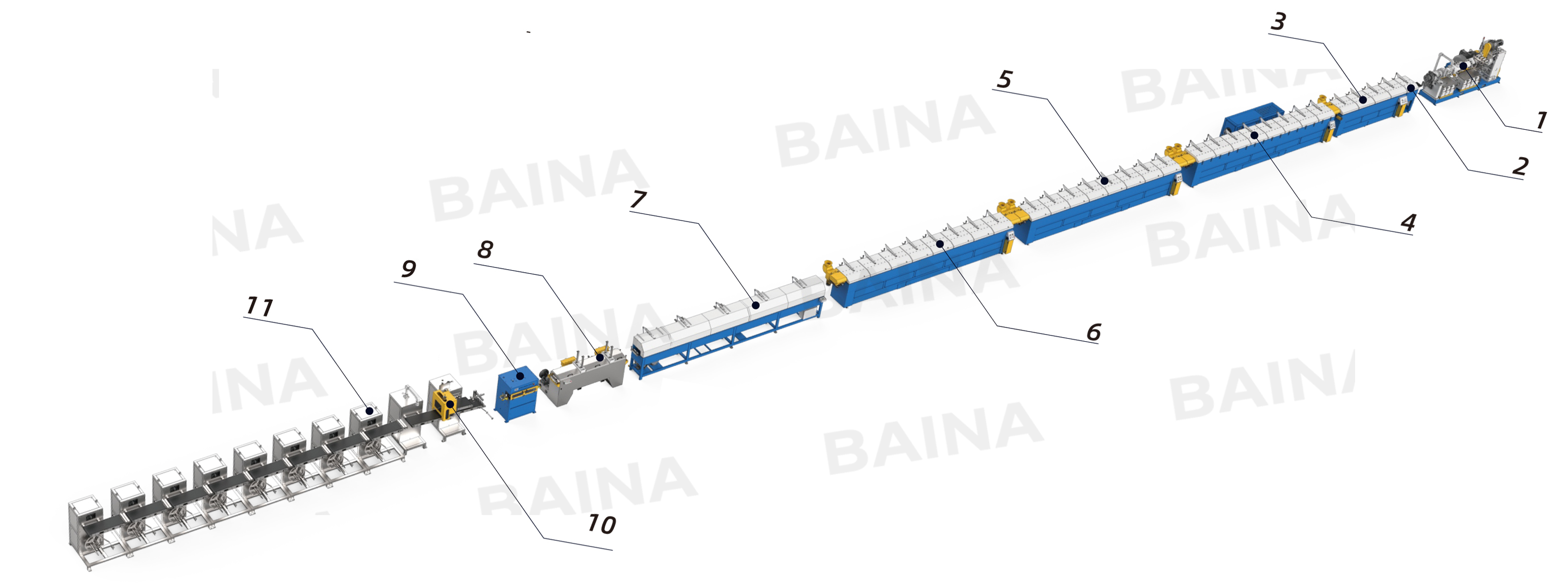

| 1-g150mm20D Cold Feed Vacuum Rubber Extruder | 4-8.9m 10KW Microwave curing oven (UHF) | 7-8m Cooling water tank | 10-Cutting machine |
| 2-600mm Ultra-high temperature oven(infrared lights) | 5-8.9m Hot air curing oven1(belt, HAV) | 8-Silicone oil coating tank | 11-Auto coiling machine |
| 3-4m Ultra-high temperature oven(infrared lights) | 6-8.9m Hot air curing oven2(belt, HAV) | 9-Puller | |
 |
 |
 |
 |
 |
|

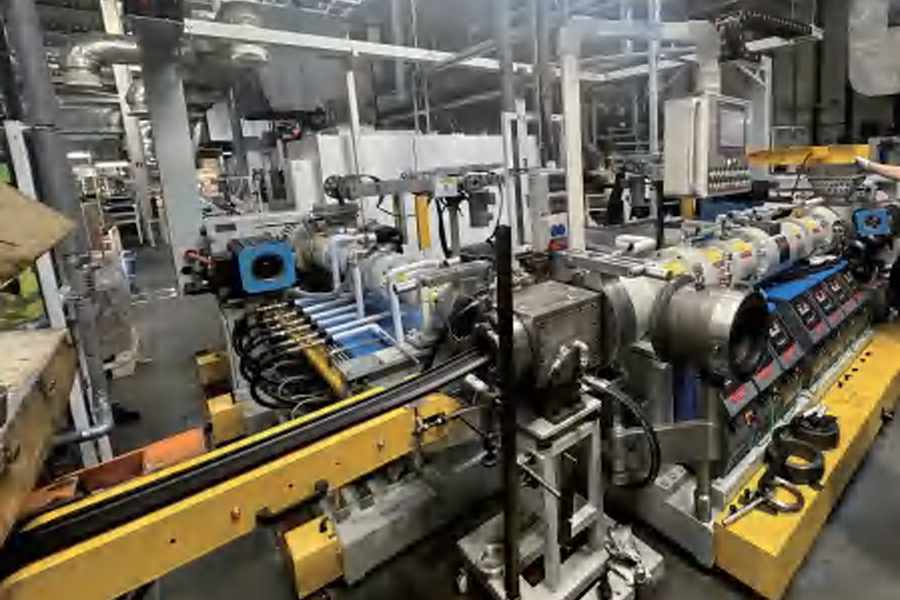

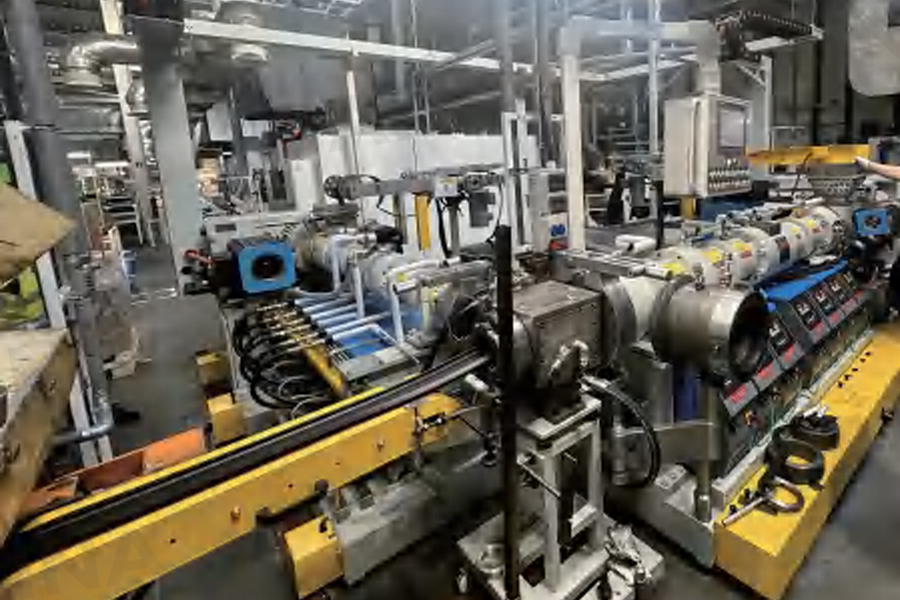

Extrusion Process |

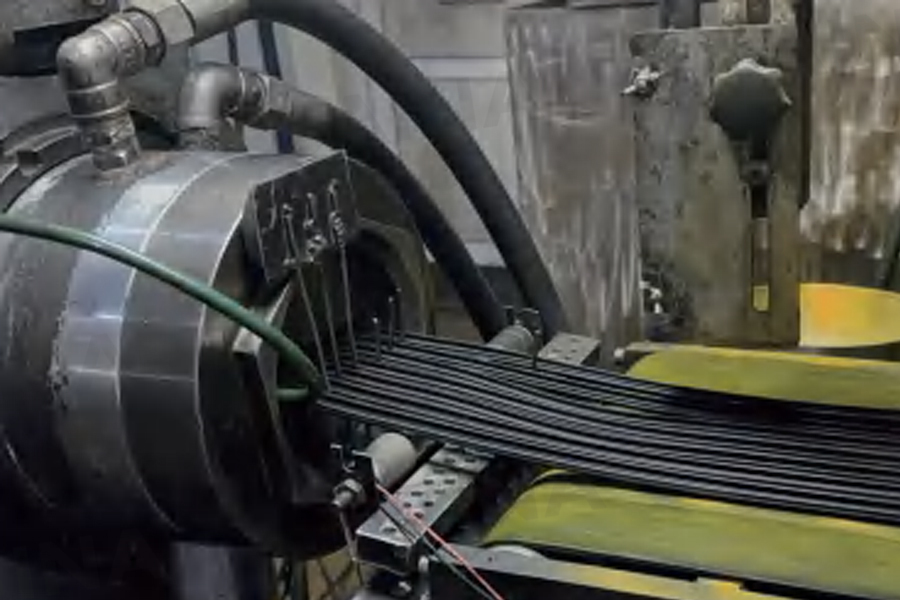

7 Cavity Extrusion |

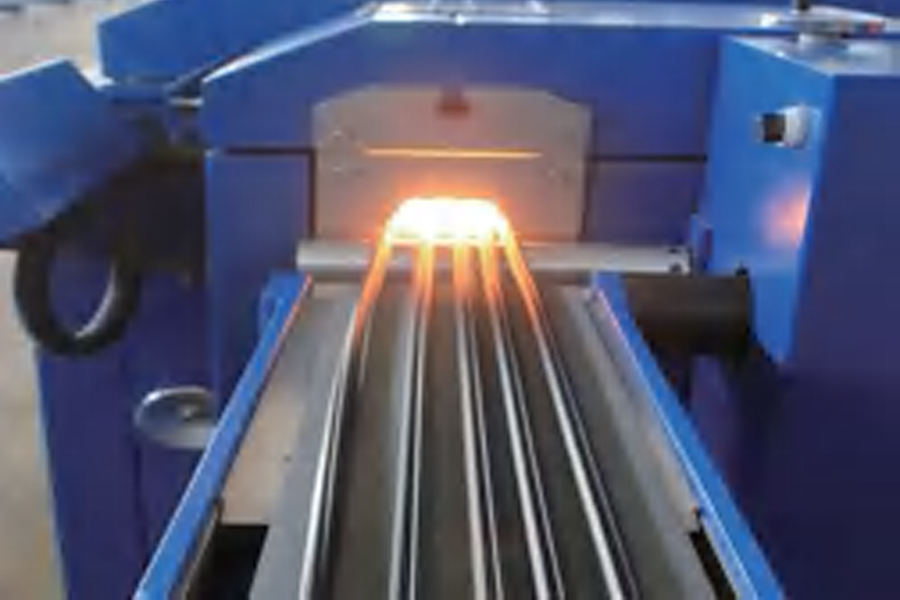

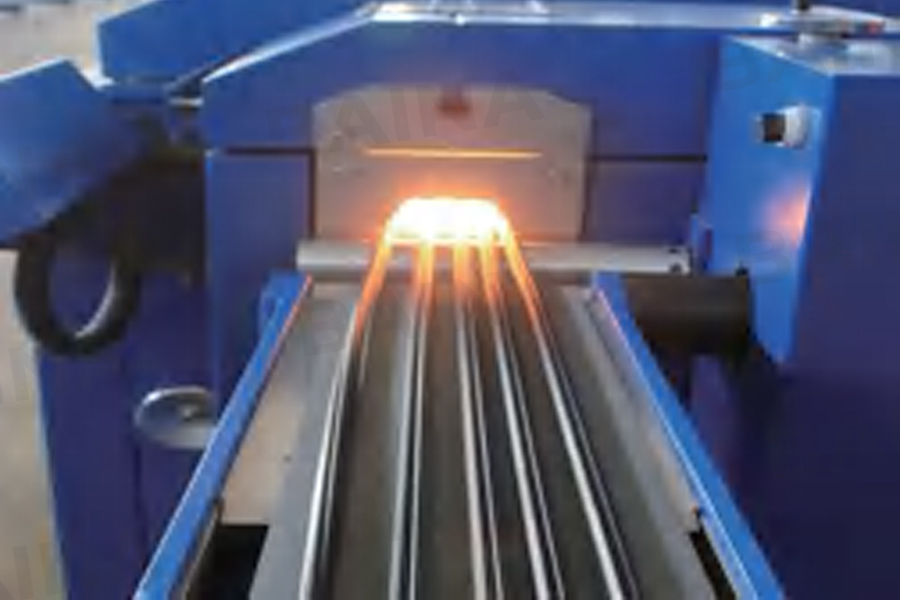

Curing Entrance |

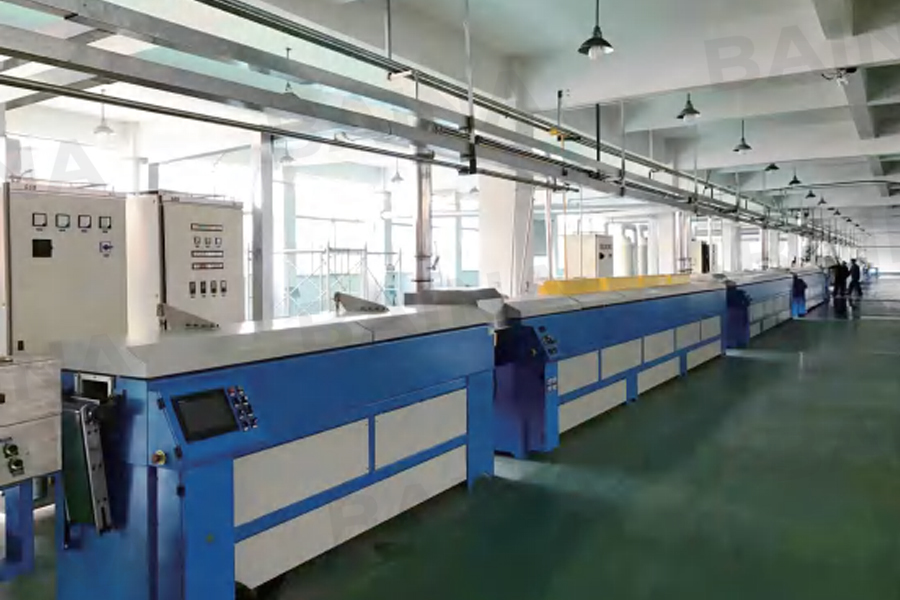

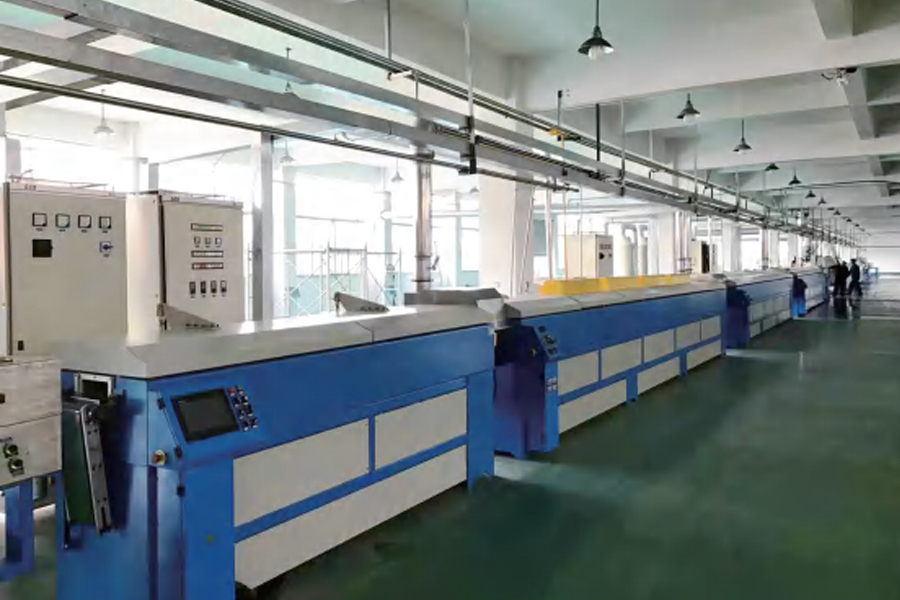

Oven |

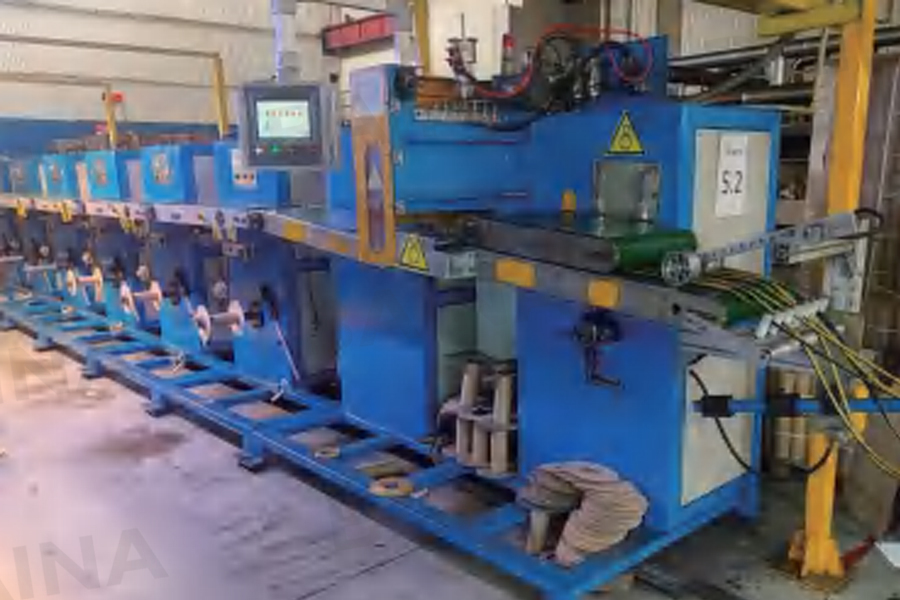

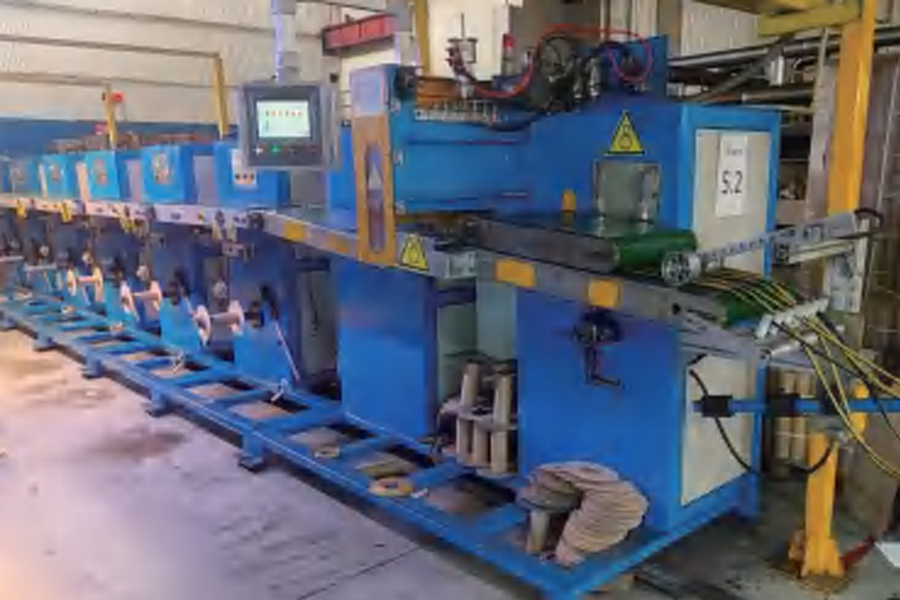

Auto Coiling Machine |
