Product Advantages

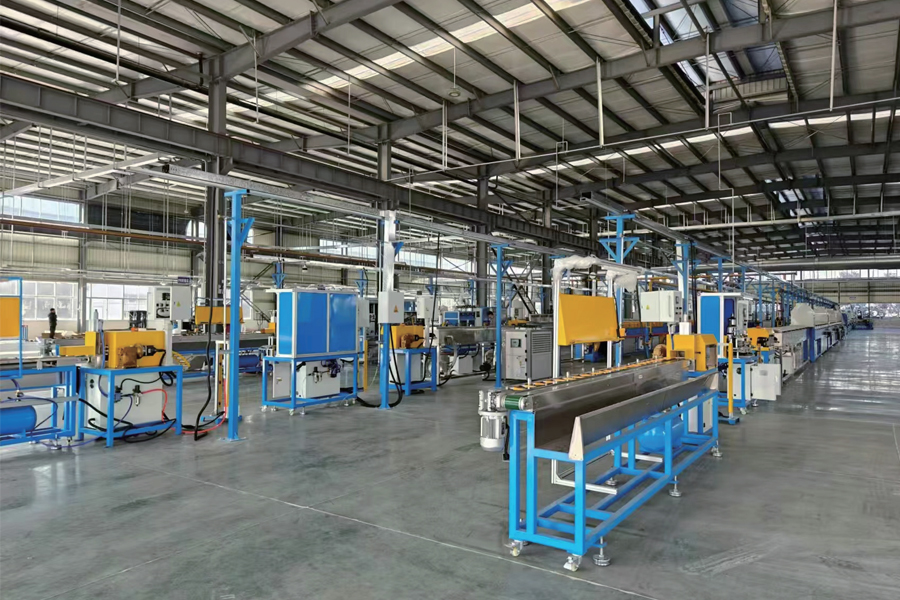

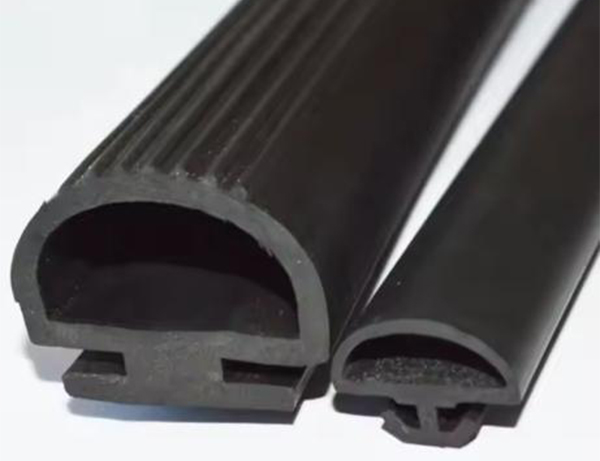

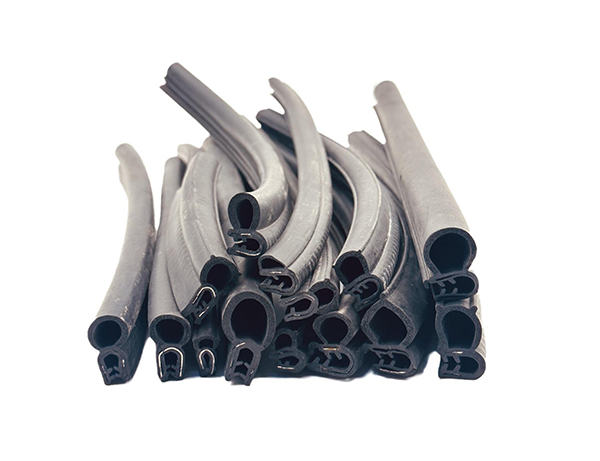

This production line is primarily used for manufacturing rubber products that are compounded with two materials.
1. Adopts precisely selected industrial waveguide tubes for efficient microwave conduction.
2. Custom cavity plates with low microwave absorption, enhancing utilization efficiency.
3. Microwave emission-compliant cavity design optimizes resonance modes and furnace-magnetron matching.
4. Multi-layer microwave leakage prevention (short-circuit ring + multi-section wave resistance + SiC) at inlet/outlet.
5. High-temp silicone-coated wires + wave-blocking device for effective door leakage prevention.
6. Laser-cut & folded iron frame, sleek and elegant in appearance.
7. Extended to 8m (based on 6.8m industry standard), combining hot air & microwave for ideal vulcanization speed; universal conveyor belt spare parts for easy production.
8. Stable microwave power control system; power redistribution upon single group failure to ensure consistent vulcanization quality.
| Model | Rubber Microwave Curing/Vulcanization Oven (UHF) |
| Effective Length | 8.9 - 10m |
| Heating | Natural gas (LNG/LPG), Euronorm compliant |
| Max Production Speed | Up to 40m/min |
| Max Shock Temp | Up to 500 °C |
| Max Microwave Power | Up to 12 kW |
| Equipped with high-speed hot air zone | |
| Independent roller & belt drive | |
| Energy-efficient operation mode | |
 |
|||||

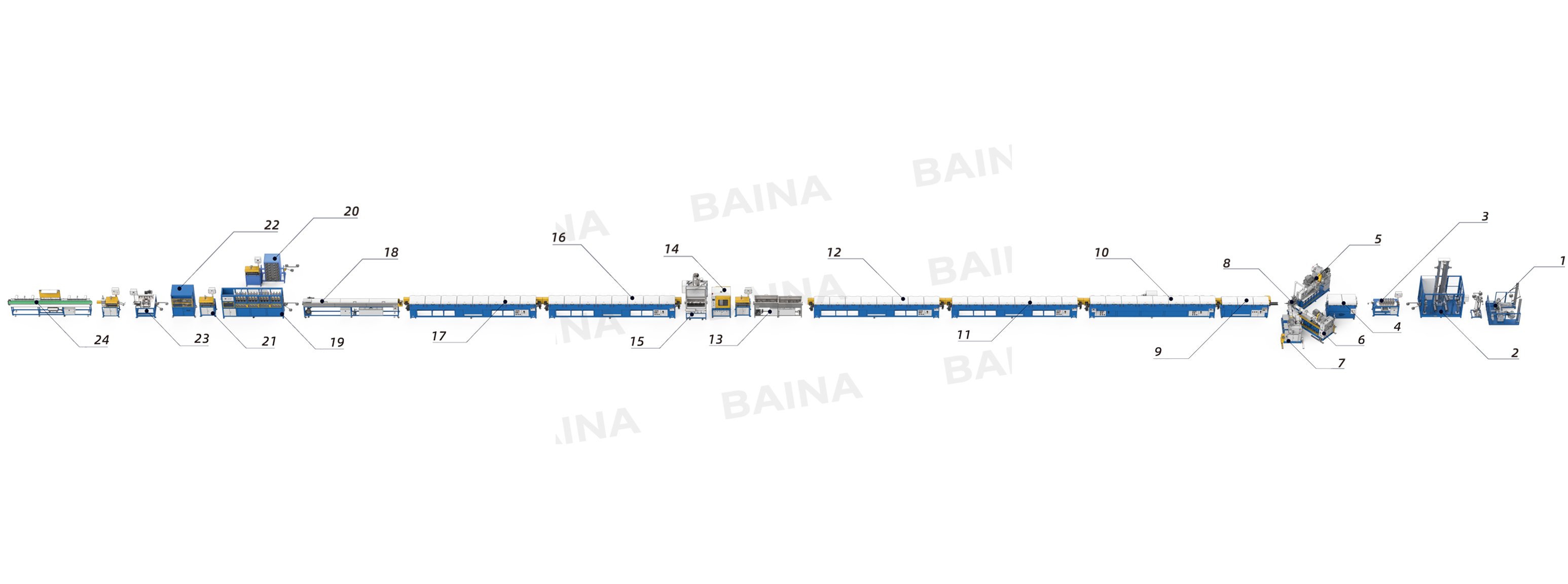

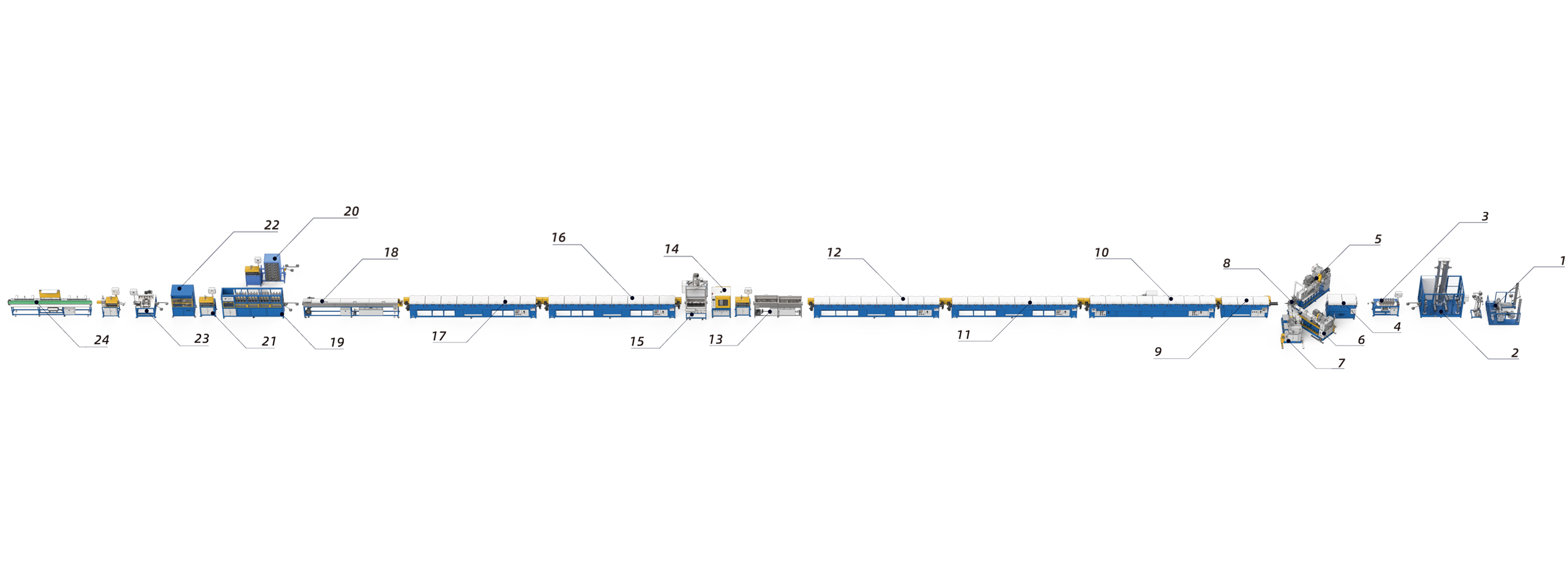

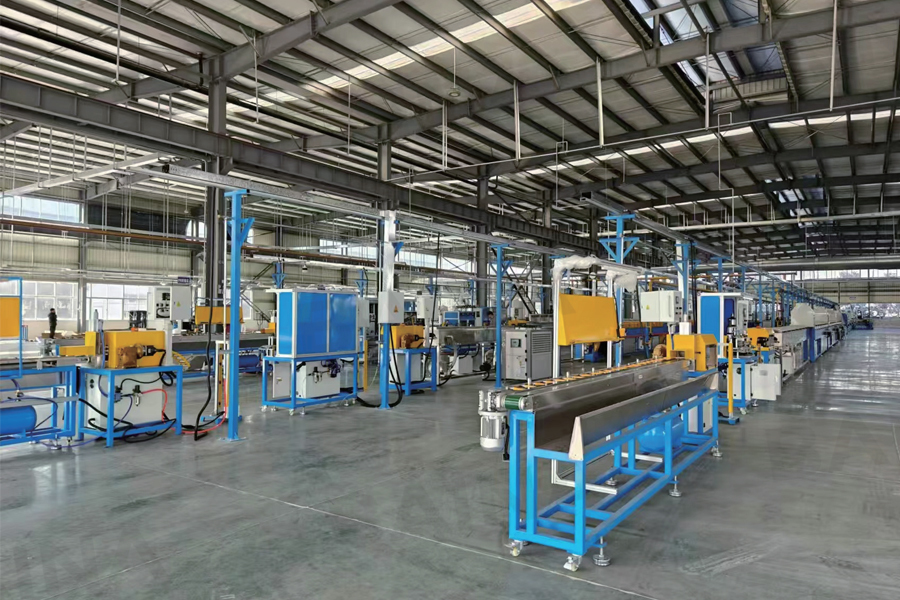

| 1-Pay off for metal insert | 5-ø105mm20D Cold feed vacuum rubber extruder | 9-3m High-temperature forming machine | 13-3m Water cooling tank | 17-8m Hot air vulcanization oven | 21-Pulling machine |
| 2-Accumulator（65m） | 6-090mm20D Cold feed vacuum rubber extruder | 10-8m Microwave vulcanization oven | 14-Plasma treatment | 18-6m Water cooling tank | 22-Drilling machine |
| 3-Preforming machine | 7-075mm20D Cold feed vacuum rubber extruder | 11-8m Hot air vulcanization oven | 15-Coating tank | 19-Horizontal steel belt breaking machine | 23-Post forming machine |
| 4-Metal heating machine | 8-4 Co-Extrusion head | 12-8m Hot air vulcanization oven | 16-8m Hot air vulcanization oven | 20-Vertical steel belt breaking machine | 24-Auto cutting machine |
 |
 |
 |
 |
 |
 |
|

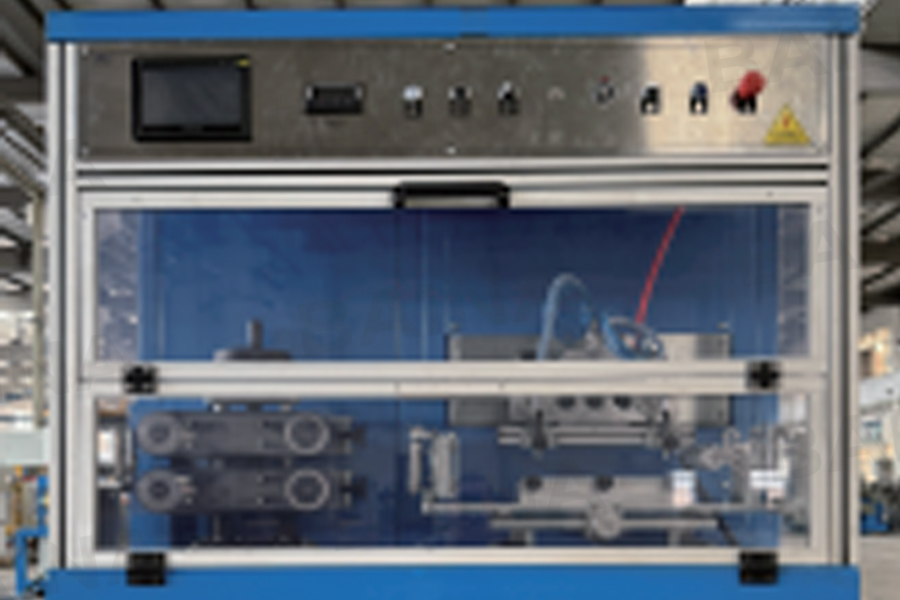

Drilling Machine |

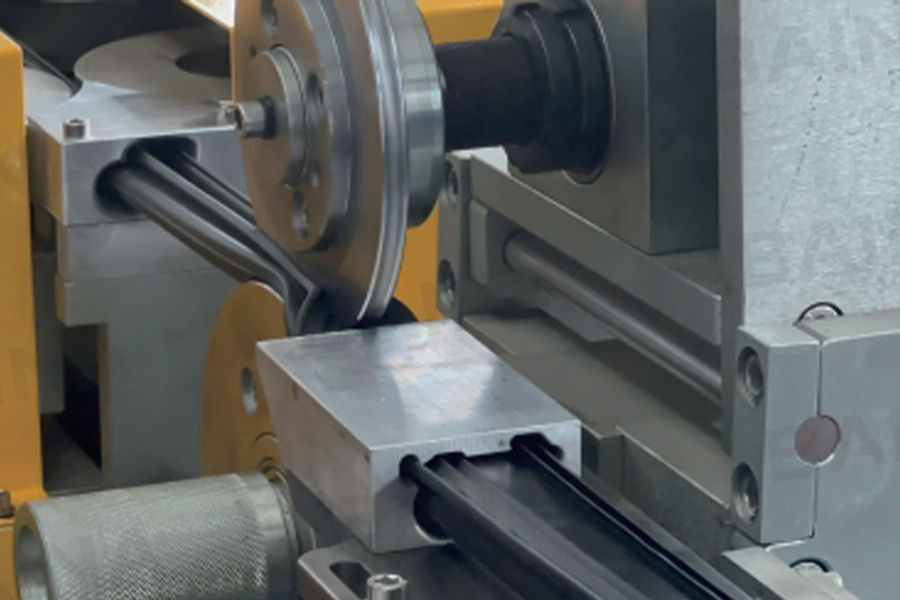

Post Forming Tooling |

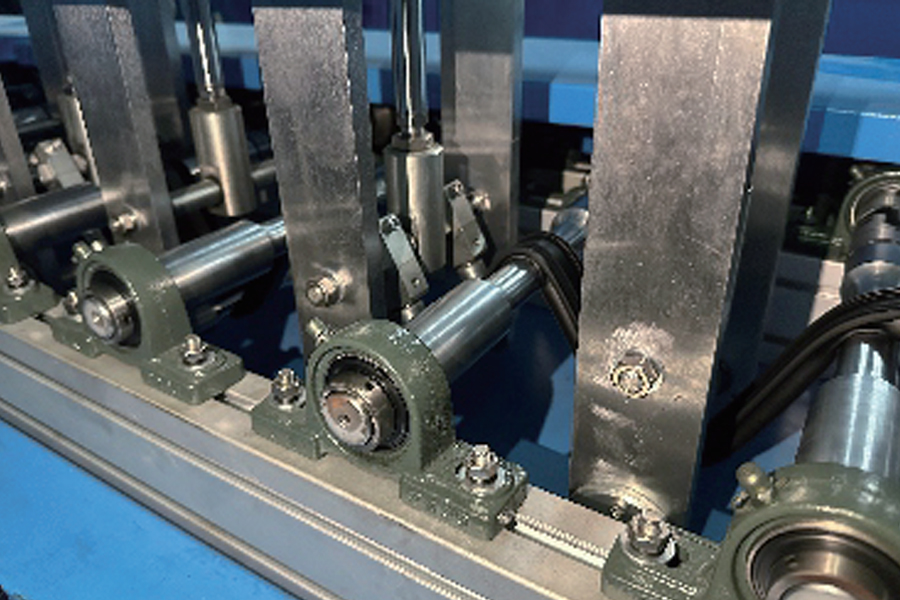

Horizontal Steel Belt Breaking Machine |

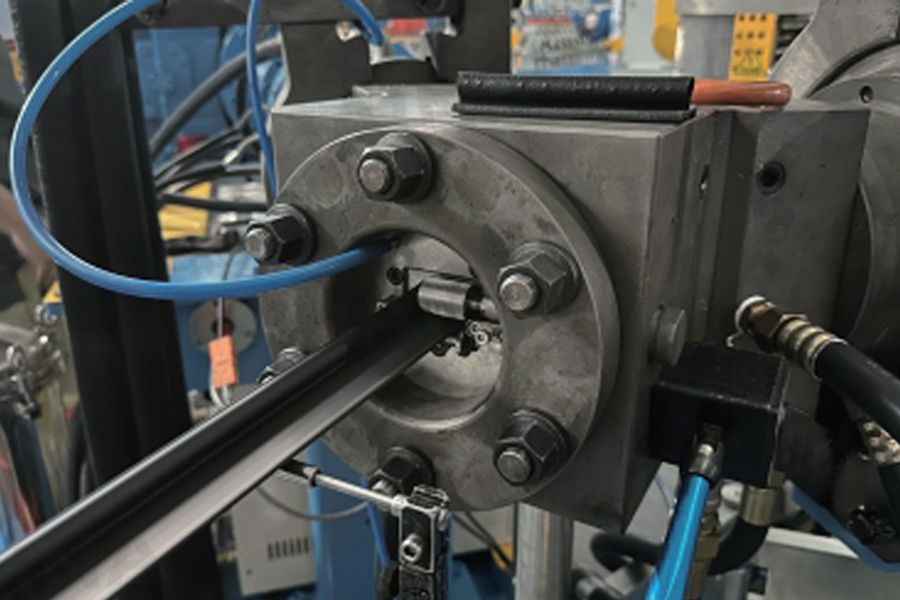

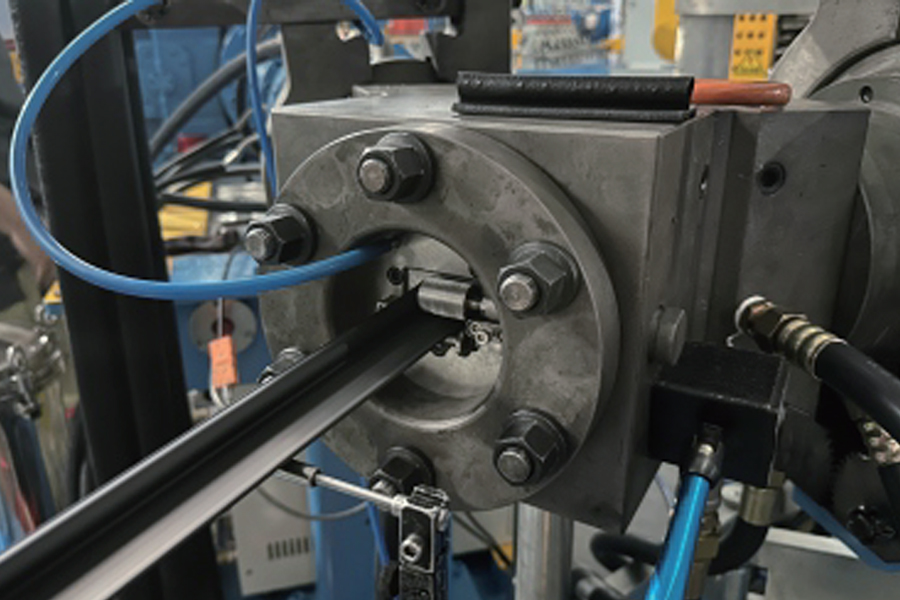

Head&Mold |

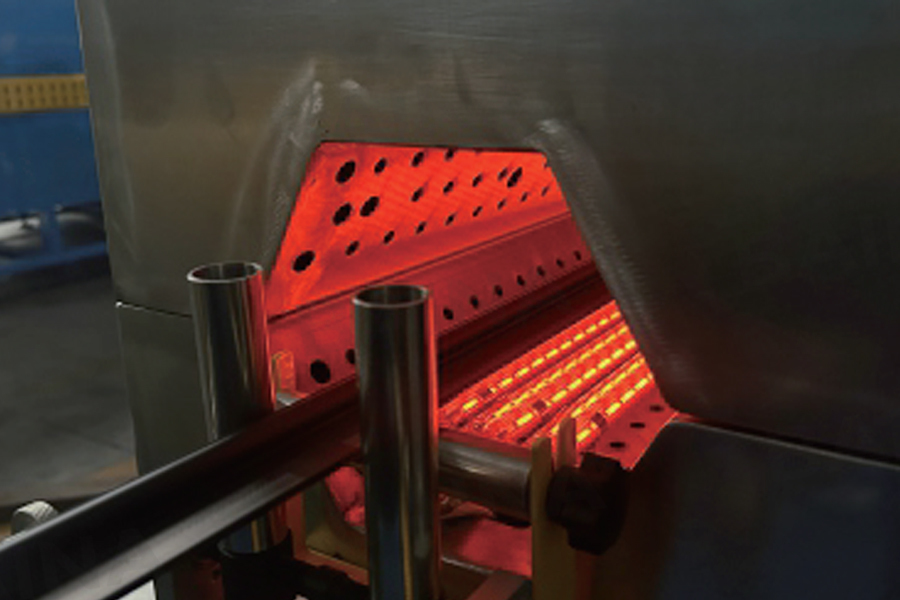

Far Infrared Oven |
Product trimming and finishing |
