NBR/PVC Open Cell Foam Extrusion Line for Air Conditioning Pipe & Sheet Insulation

1. Core Control System Advantages: Utilizes Siemens motors, frequency converters, and PLCs paired with Omron TCUs to achieve optimal system control and stable speed regulation.
2. Power and Transmission System: Employs Siemens motors and stabilized gearboxes, supporting stepless speed regulation from 0 to 9 m/min for smooth operation.
3. Multi-Material Vulcanization Process: Specifically designed for continuous vulcanization production of EPDM, NBR, and PVC insulation pipes/sheets.
4. Strong Environmental Adaptability: Capable of stable operation under temperatures of 0-50 °C and humidity levels of 50%-90%.
5. Integrated Control: Centralized regulation of production line speed and process parameters via PLCs and frequency converters.
6. Safety and Efficiency: Equipped with flame detectors to monitor combustion status, with gas and pressure control systems designed to meet industrial standards.

Parameter
Product Display
Contact Us

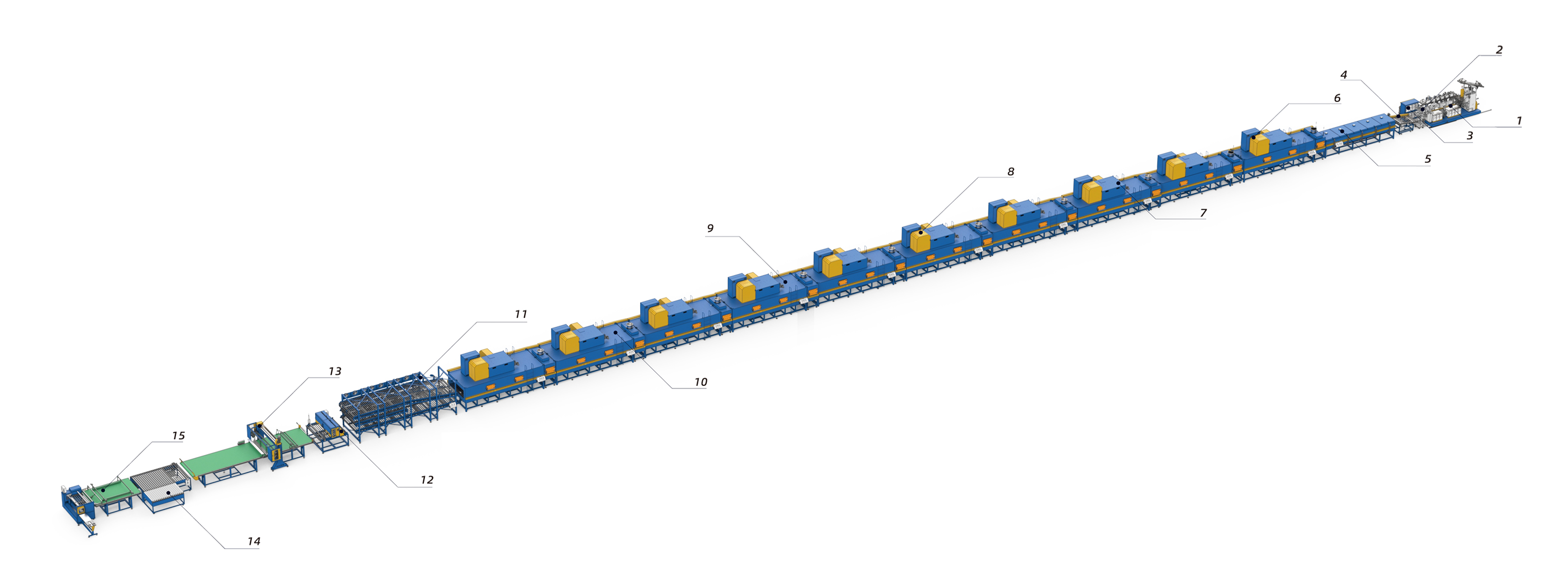

1-0150mm Exhaust cold feed extruder	5-Infrared ovens	9-6m Hot air curing oven(width 1800mm) x2	13-Cutting machine (saw blade)
2-Rubber tube head 3/6/9	6-6m Hot air curing oven(width 1140mm) x2	10-6m Hot air curing oven(width 2000mm) x2	14-Hose collector
3-Tube head automatic control system	7-6m Hot air curing oven(width 1440mm)x2	11-8m*3 Tiers cooling system	15-Sheet collector

4-Return material traction machine	8-6m Hot air curing oven(width 1600mm) x2	12-Edge trimming for sheet

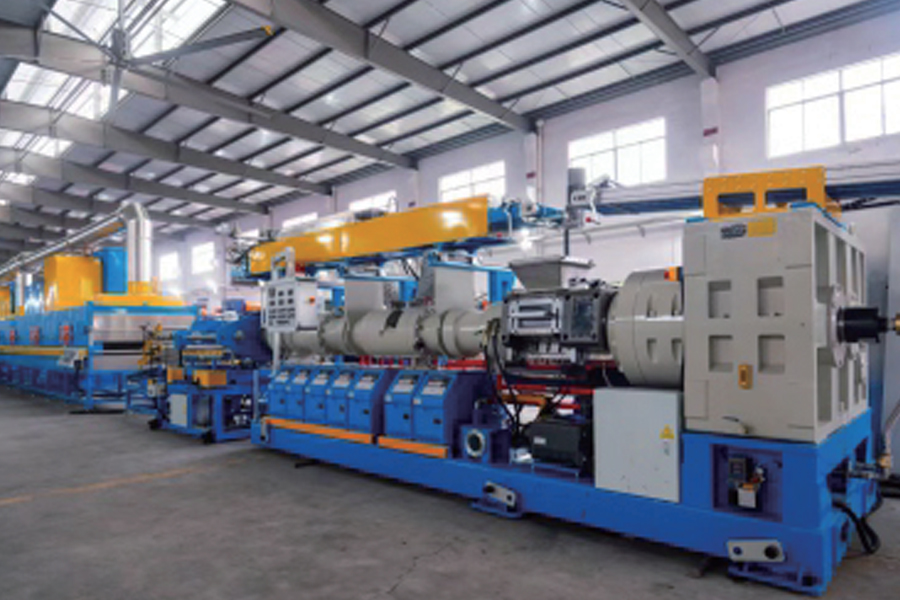

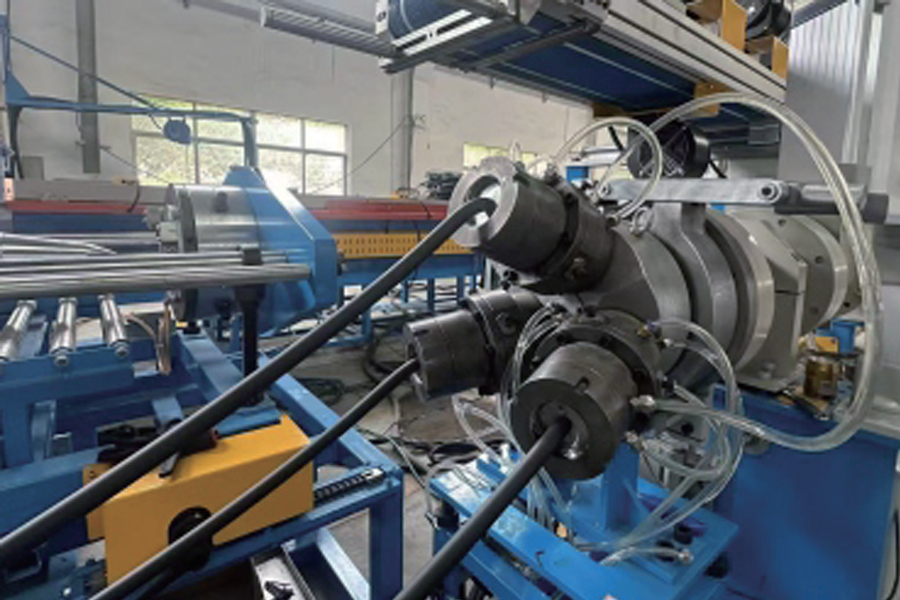

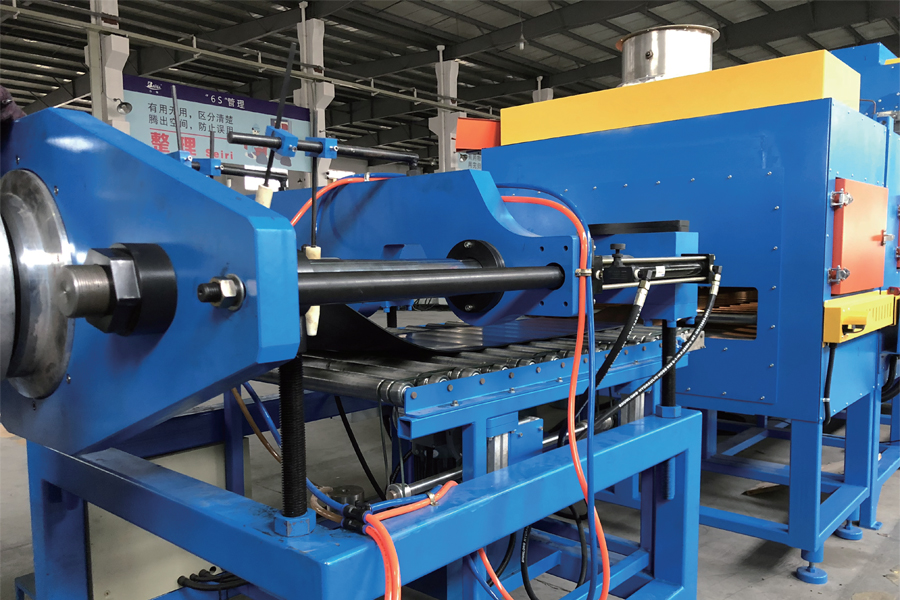

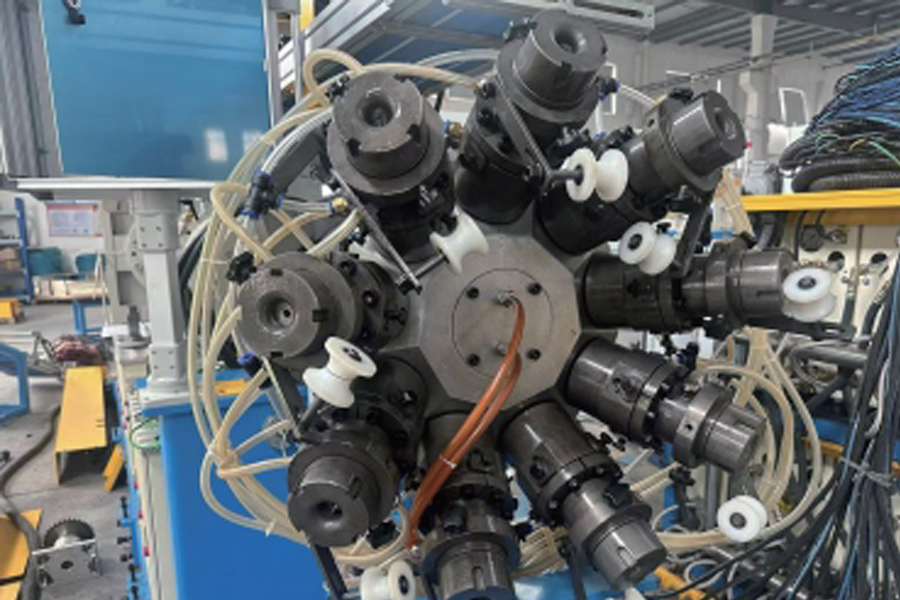

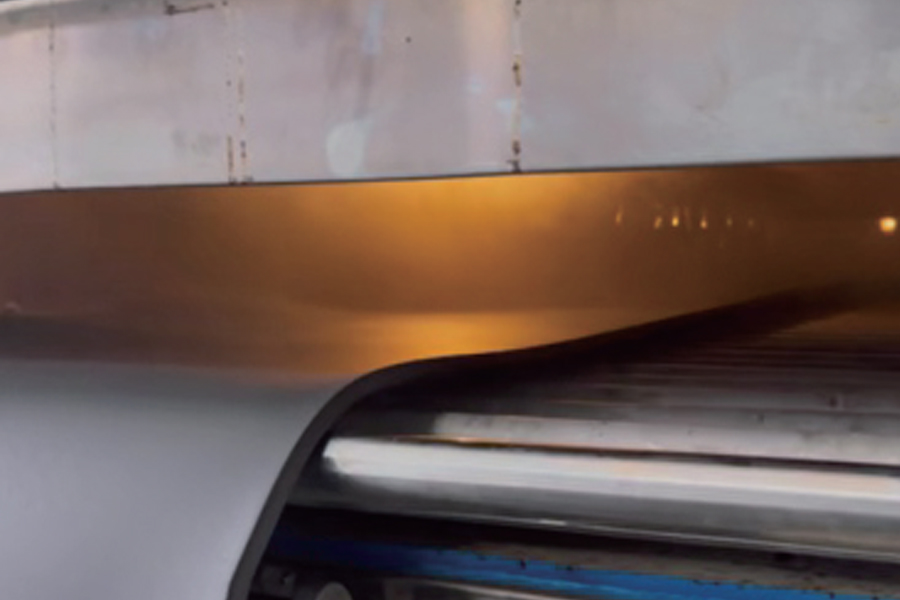

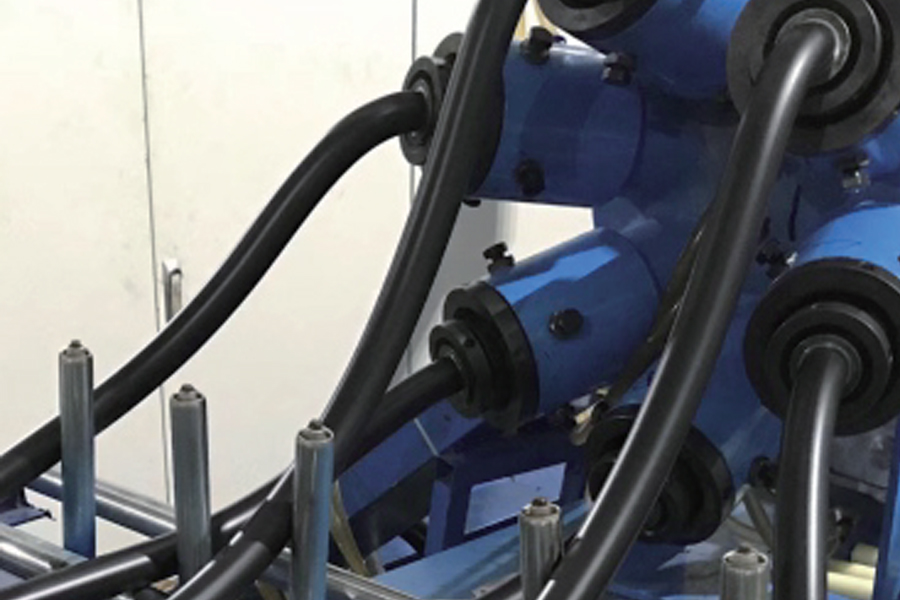

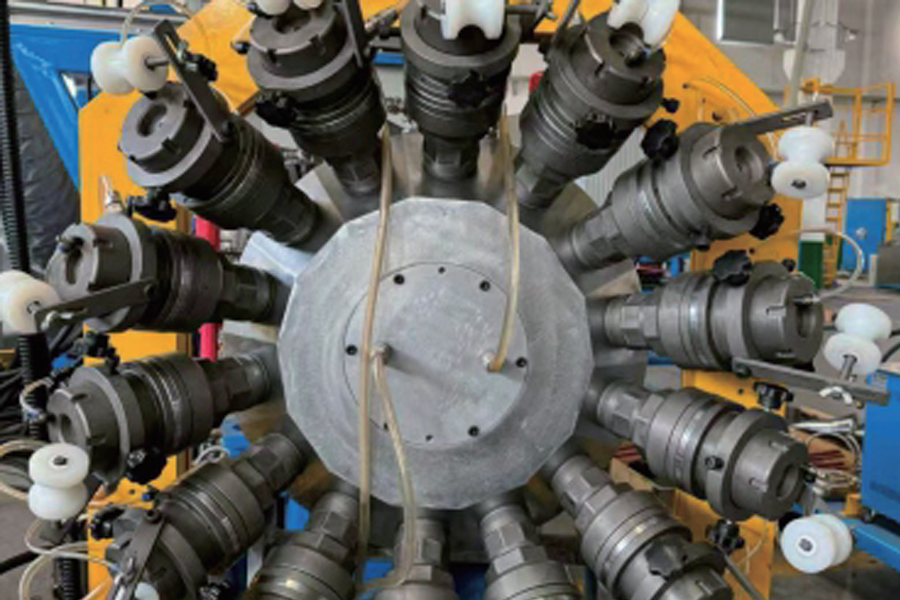

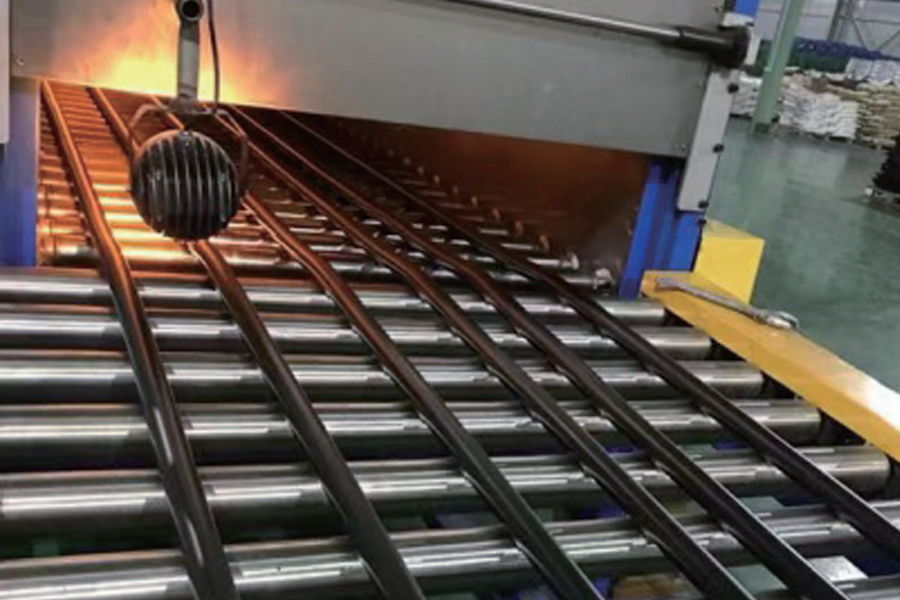

Rubber Extruder	Rubber Tube Head	Rubber Tube Head	Foam Insulation Sheet	Inside The Hot Air Curing Oven	Rubber Sheet Head	Rubber Tube Head 1	Rubber Tube Head 2

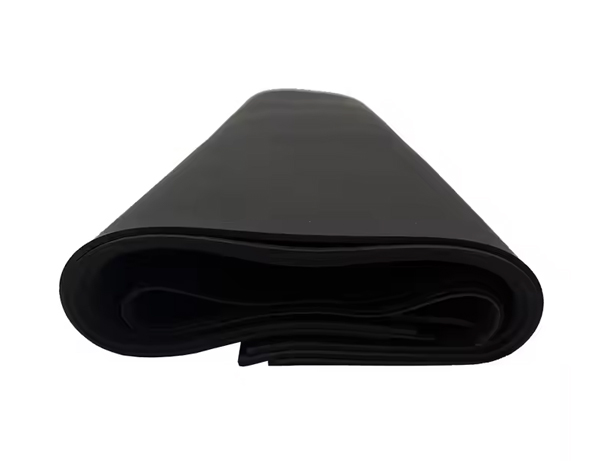

Rubber foam sheets

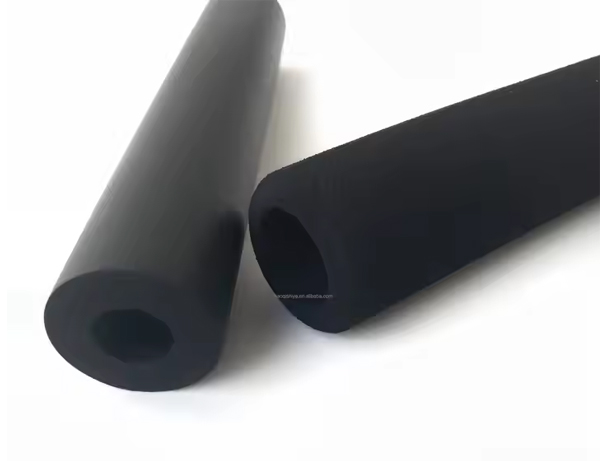

Rubber foam tubes

Rubber foam sheets
Rubber foam tubes
