Understanding the System of a Rubber Extruder Machine

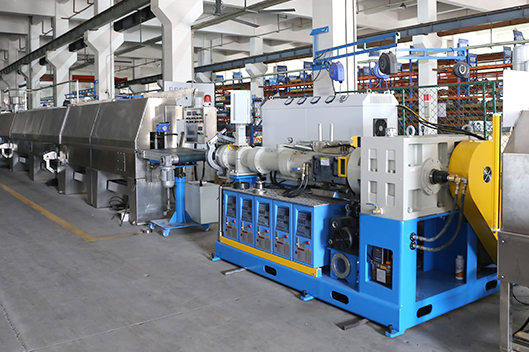

China EPDM Rubber Extruder Machine For Sale Manufacturer Factory

A rubber extruder machine plays a crucial role in the manufacturing of rubber products by shaping raw rubber into various forms for a wide range of industrial applications. These machines are designed to process rubber materials into specific profiles, sheets, tubes, or other complex shapes, depending on the requirements of the end product. The working principle of rubber extruder machines is based on a continuous process that involves melting, mixing, and shaping rubber compounds.

Key Components of a Rubber Extruder Machine

A rubber extruder machine is typically made up of several components that work together to form a functional system. These components are:

Feeding System:

The feeding system is responsible for introducing the rubber material into the extruder. This can include a hopper, a screw feeder, or a conveyor system. The feeding system must ensure a consistent and uniform supply of rubber compound into the extruder to maintain the quality and accuracy of the extrusion process.

Extruder Barrel:

The barrel is the main chamber where the rubber material is processed. It is typically made of steel or alloy materials capable of withstanding the heat and pressure required for extrusion. The barrel houses the rotating screw and is equipped with heating and cooling systems that help control the temperature of the rubber compound during processing.

Screw:

The screw inside the extruder barrel plays a critical role in the rubber extrusion process. The screw rotates to push the rubber material through the barrel, which helps in melting, mixing, and compressing the rubber. The design of the screw is essential, as it influences the flow characteristics and the homogeneity of the material. A well-designed screw ensures a consistent output and high-quality extrudate.

Heating and Cooling Systems:

Heating and cooling systems are integrated into the barrel to regulate the temperature of the rubber compound. Heat is applied to soften the rubber and make it more pliable, while cooling is used to prevent overheating and ensure that the material does not degrade. The temperature control within the extruder is crucial for achieving the right consistency and quality of the final product.

Die and Die Plate:

The die is the final shaping component through which the rubber material exits the extruder. Dies are custom-designed to form specific shapes, such as sheets, tubes, profiles, or any other desired configuration. The die plate typically has a profile that matches the end product, and the rubber material is forced through it under pressure to take on the desired shape.

Drive System:

The drive system consists of electric motors and gearboxes that provide the necessary power to rotate the screw within the extruder barrel. The motor's speed can be controlled to adjust the rate of extrusion and to maintain a steady output. The drive system is critical in ensuring the efficiency and stability of the extrusion process.

Control Panel:

The control panel is the interface where operators can monitor and adjust various parameters such as temperature, screw speed, pressure, and output rate. Modern extruder machines are often equipped with advanced PLC (Programmable Logic Controller) systems, allowing for automated and precise control of the process.

The rubber extrusion process begins with the preparation of the rubber compound. Rubber is often mixed with other ingredients, such as plasticizers, fillers, and accelerators, to achieve the desired properties for the end product. Once the rubber compound is ready, it is fed into the extruder's feeding system.

As the rubber material enters the extruder barrel, it is subjected to pressure and heat. The rotating screw pushes the material forward through the barrel, gradually melting and mixing it to achieve a homogeneous consistency. The friction between the screw and the barrel generates heat, which helps to soften the rubber.

The rubber compound is then forced through the die at the end of the barrel, where it takes the shape dictated by the die design. The die ensures that the rubber emerges from the extruder in the required profile or form. The extrudate may then undergo additional cooling or curing processes, depending on the specific requirements of the product.
