Motor Power: 7.5 kW
Maximum Output: 50 kg/h

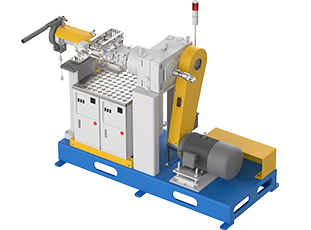

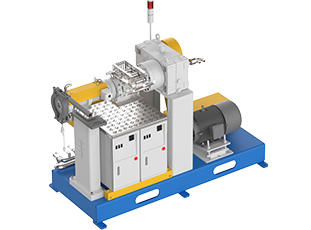

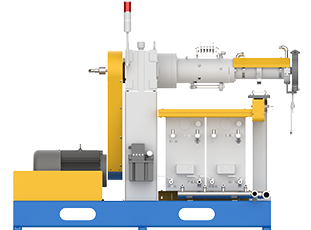

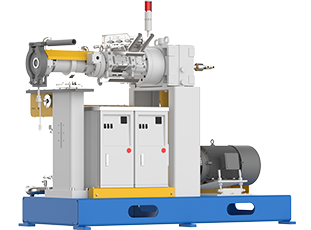

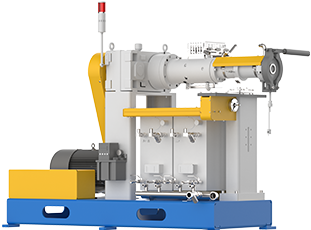

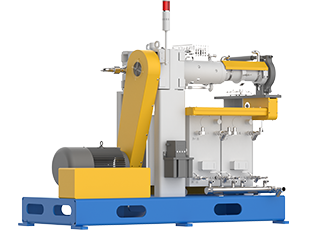

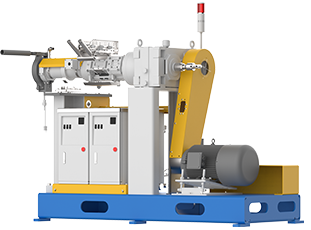

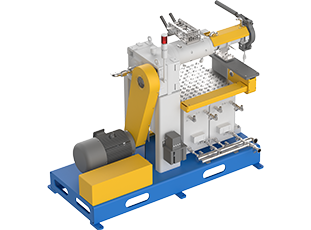

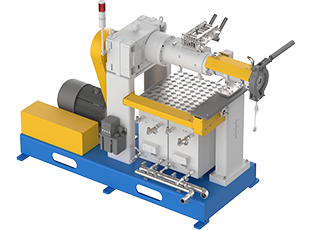

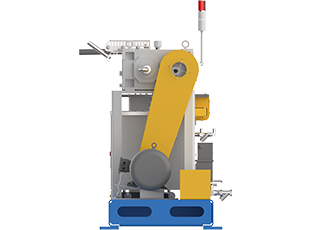

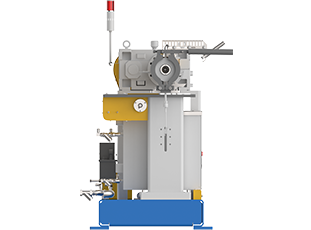

| Equipment Name: | Φ50mm 12D Silicone Extruder |
| Equipment Model: | E3-50-12D-01-00 |
| Equipment Use: | Extrudes silicone rubber, providing mixing and plasticizing functions, and works in conjunction with the die head for extrusion molding. |
| Dimensions: | 2190mm × 975mm × 2293mm (Length × Width × Height) |
| Extrusion System: | |
| Feeding Method: | Side pressure roller transmits power through the screw. |
| Feeding Structure: | Side pressure roller gear meshes with the screw gear for transmission, and is equipped with an automatic lubrication device. |
| Screw Material: | 38CrMOAL |
| Screw Hardness: | HRC65-68 |
| Steel Sleeve Hardness: | HRC65-70 |
| Nitriding Depth: | 0.4-0.7mm |
| Screw Structure: | Designed for optimal silicone extrusion performance. |
| Pressure Control: | Equipped with a pressure sensor, adjustable pressure protection value 0-50MPA. |
| Extruder Mounting: | Stationary |
| Length-to-Diameter Ratio: | 12:01 |
| Screw Diameter: | 50mm |
| Screw Speed: | 5-70 r/min |
| Maximum Output: | Approximately 50 kg/h (under no pressure) |
| Drive System: | |
| Screw and Gearbox Connection: | Spline connection |
| Motor and Gearbox Drive: | Belt drive |
| Hardened Gear Reducer Model: | ZLYJ133-13.5-1 |
| Motor Power: | Motor [132M-4]-B3 (7.5KW) Forced Cooling |
| Total Equipment Power: | Approximately 9KW |
| Speed Control Method: | Variable frequency speed control |
