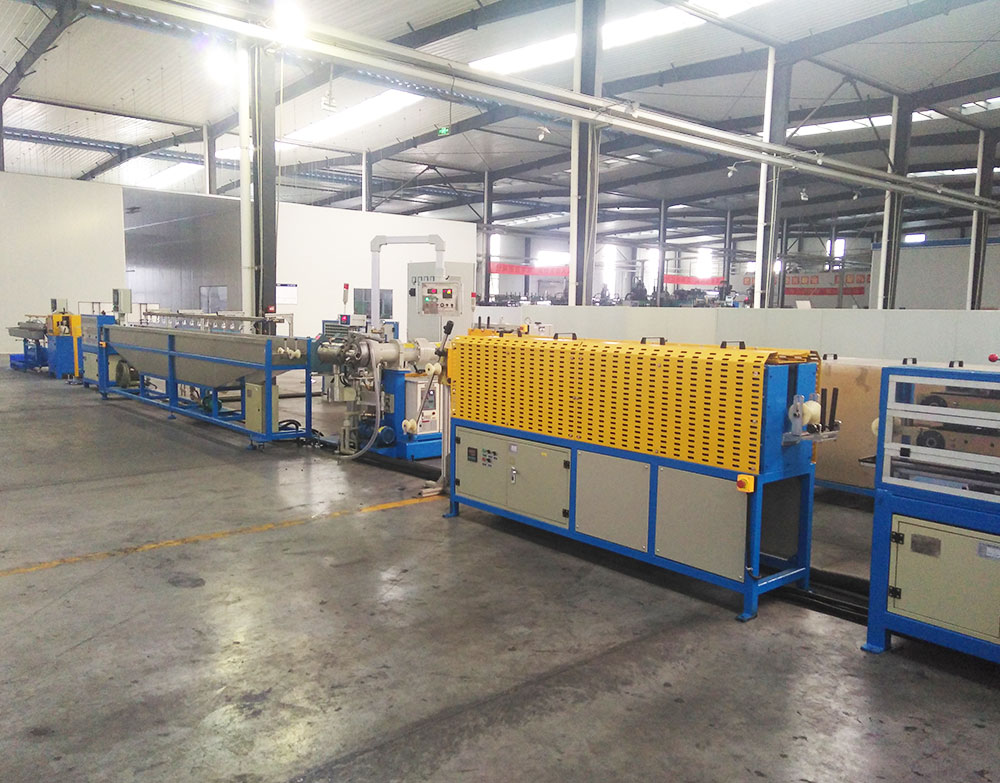

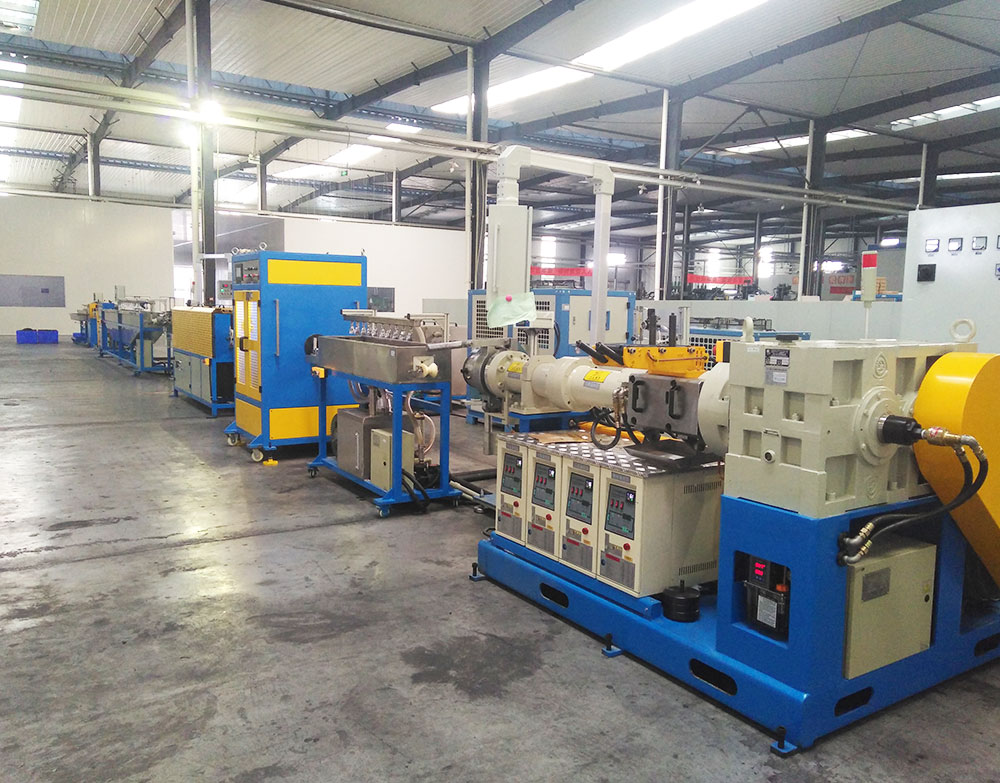

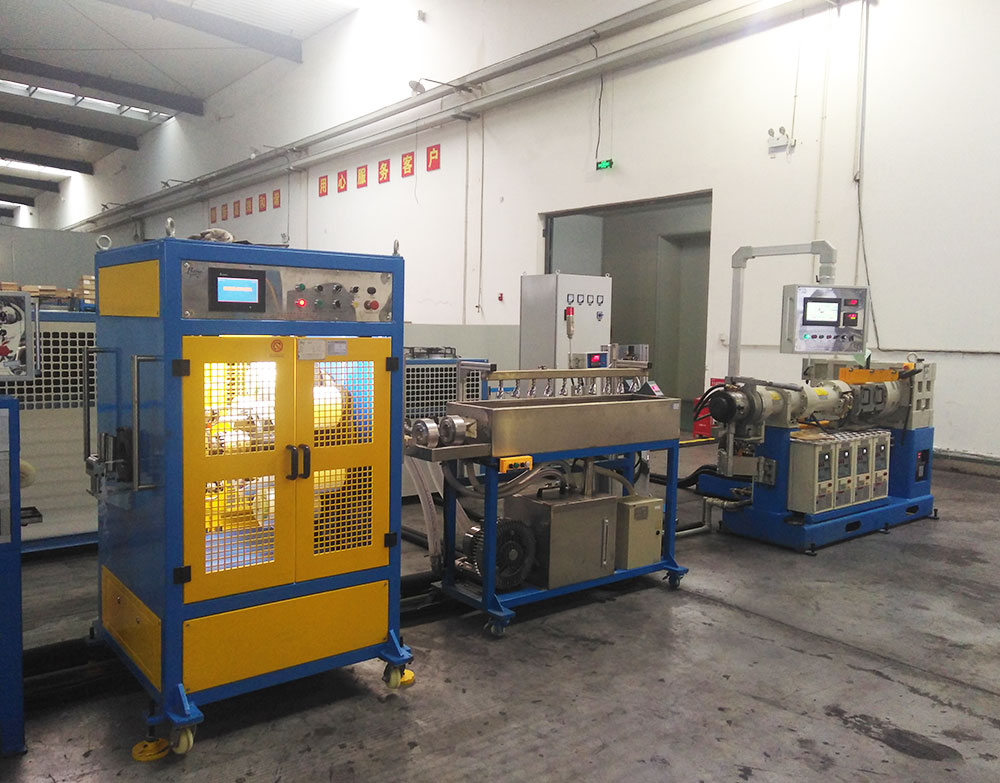

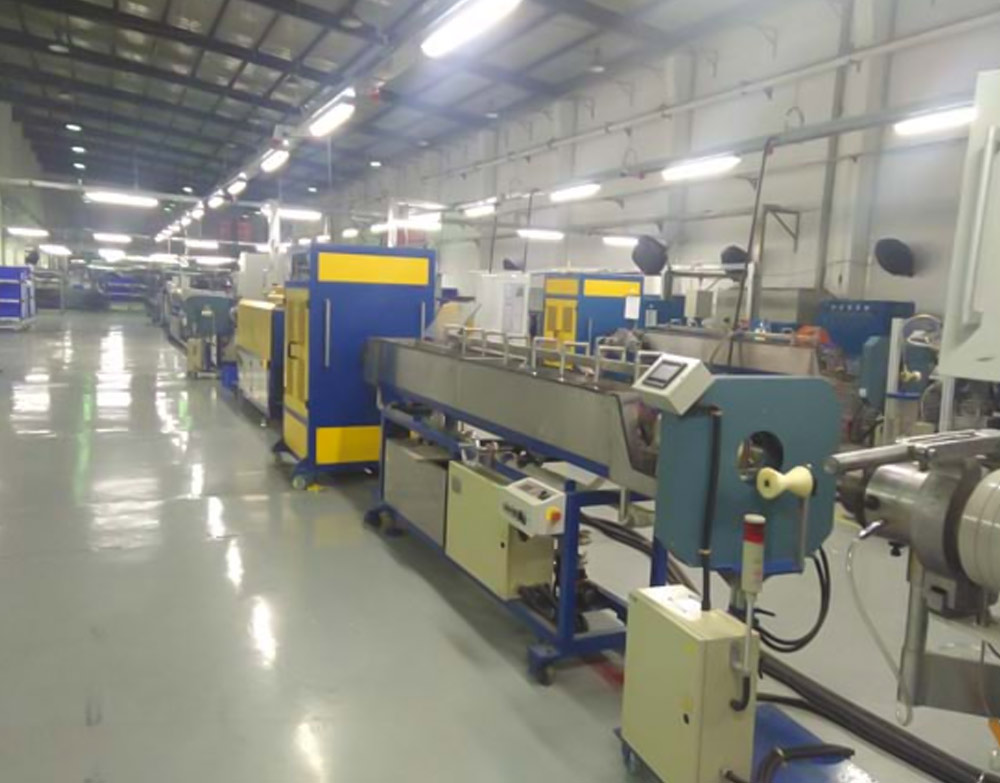

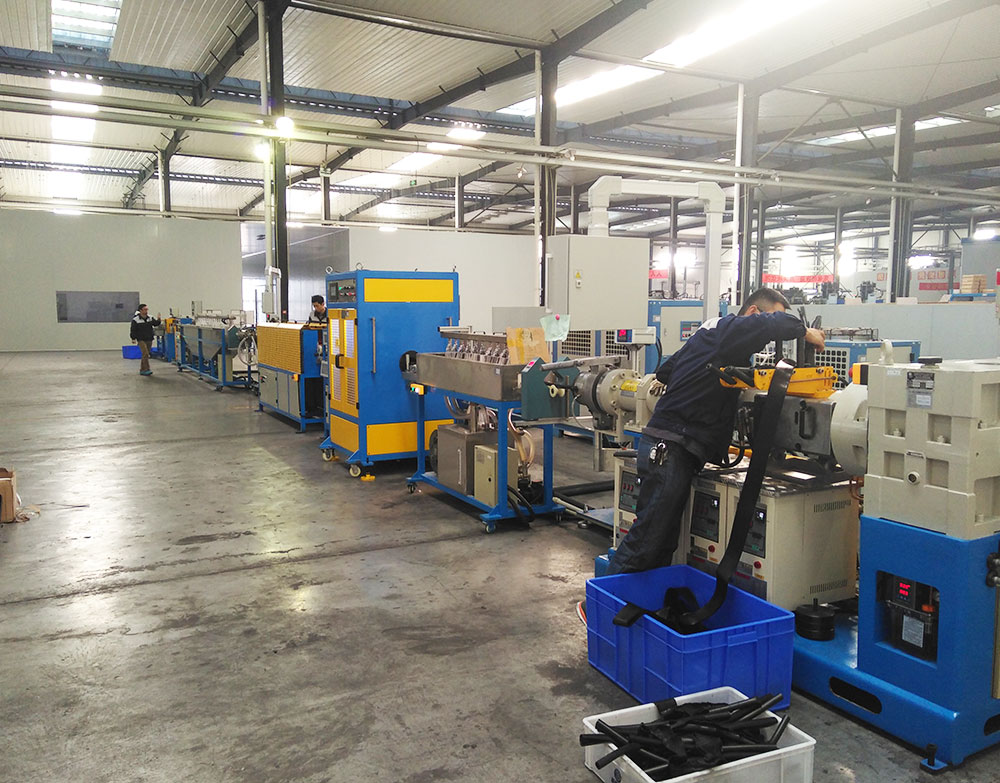

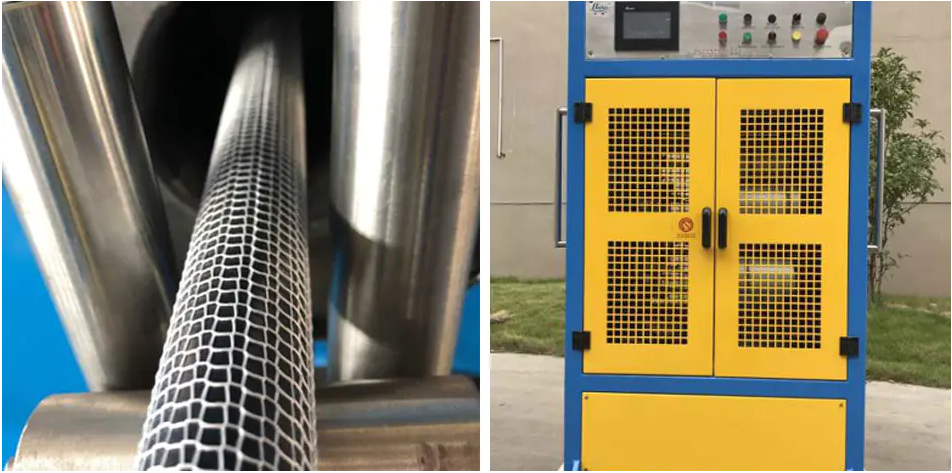

Knitting Hose Production Line

The knitting machine developed and manufactured by BAINA. is widely used in bothdomestic and overseas markets, with its market share having reached over 90% in domestic, which is the ideal. choice to be selected as the equipment for constructing the reinforcement layer of automobile cooling systemhoses and turbocharging rubber hoses. Atter in-depth analysis and study on the impact of kniting structure ontheproduct performance,a system for optimizing the knitting structure is integrated in the control system of theknitting machine, which is able to match the optimum knitting process parameters automatically. Through controlling in conjunction with the dragger developed by our company, optimum design of theknitting structure can be realized. In addition, several practical functions, suchas threads lack alarm, threads breaking alarm, threads jumbling alarm and output statistics, are integrated in thesyatem. Meanwhile, with combined use of the automatic detection system for the reinforcement layer, online andreal-time inspection on the knitting structure and automatic defect alarm can be realized to ensure the productquality.

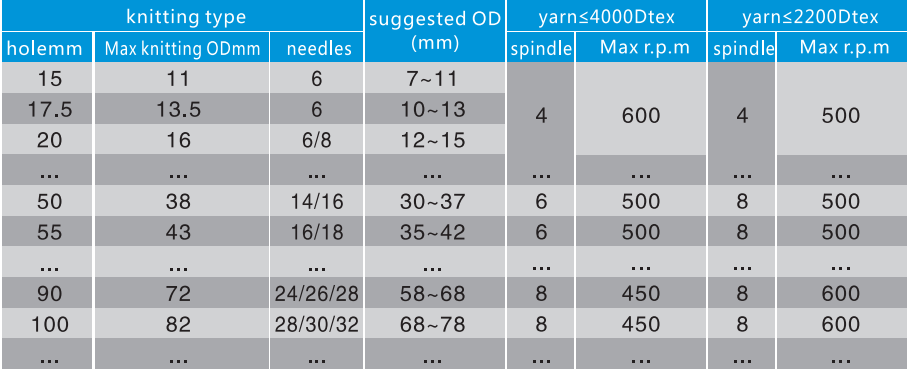

RECOMMENDED TYPE SELECTION TABLE FOR KNITTING MACHINE(AXIAL GRID SIZE OF 3.0±0.5MM

Knitting Type			Suggested OD(mm)	Yarn<4000Dtex		Yarn<2200Dtex
Holemm	Max knitting ODmm	Needles		Spindle	Max r.p.m	Spindle	Max r.p.m
15	11	6	7~11	4	600	4	500
17.5	13.5	6	10~13
20	16	6/8	12~15
...	...	...	...	...	...	...	...
50	38	14/16	30~37	6	500	8	500
55	43	16/18	35~72	6	500	8	500
...	...	...	...	...	...	...	...
90	72	24/26/28	58~68	8	450	8	600
100	82	28/30/32	68~78	8	450	8	600
...	...	...	...	...	...	...	...

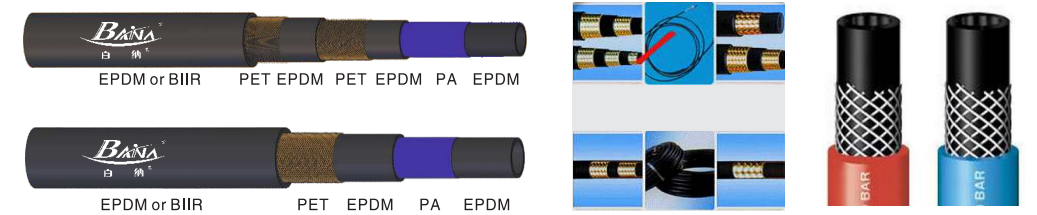

RUBBER HOSE MAKING MACHINE AND TECHNOLOGY/KINTTING(SPIRAL) RUBBER HOSEPRODUCTION LINE AND PROCESS TECHNOLOGY

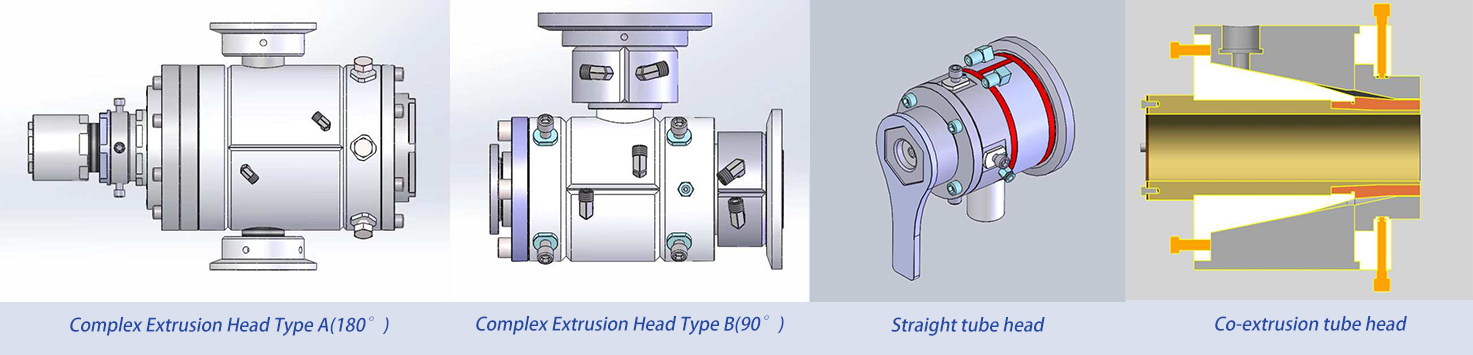

RUBBER HOSE EXTRUSION HEAD
