10th Generation Rubber Extruder
10th Generation Rubber Extruder

Optimized from the 9th generation, Full import configuration is adopted for the whole machine. German GWK temperature control system(accuracy up to±℃) was adopted to improve the stability of rubber extrusion. German Becker vacuum system is applied to improvethe compactness and stability of rubber products. Active feeding with Rossi frequency conversion reducer to drive independently to meet the technological requirements of different rubber. HMI operating system is to realize information monitoring and remote control in PC or mobile APP.

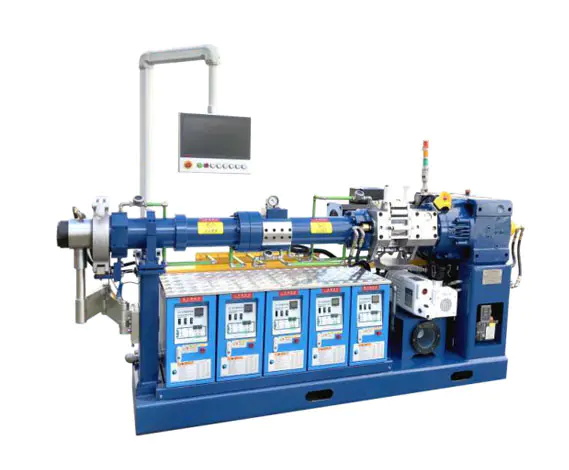

The 9th generation rubber extruder(2018.08)
The 9th generation rubber extruder(2018.08)

The 9th generation 90mm20D Vacuum type rubber extruder applied with Rossi reducer(Made in Italy) Italian Fitz servo motor(Made in Italy)(optional Siemens) Fitz servo driver(Made in Italy)(optional Siemens). The screw and cylinder sleeve are all made of Japanese material. The body of the machine is made of 38CrMoAl, which improves the coaxiality of the body assembly and prolongs the service life of the body and the screw. Full touch human-machine interface operation system can realize information reading and remote control on computer or mobile phone APP.

8th Generation Rubber Extruder(2018)
8th Generation Rubber Extruder(2018)

Screw and barrel imported from another countries, screw can be moved forward and backward in order to extrude rubber products more stability; SERVO motor by Siemens brand (made in Germany) or PHASE(made in Italy), Control by all touch screen, you can control and see all data by computer or mobile's APP. Remote monitoring working condition of rubber machines.

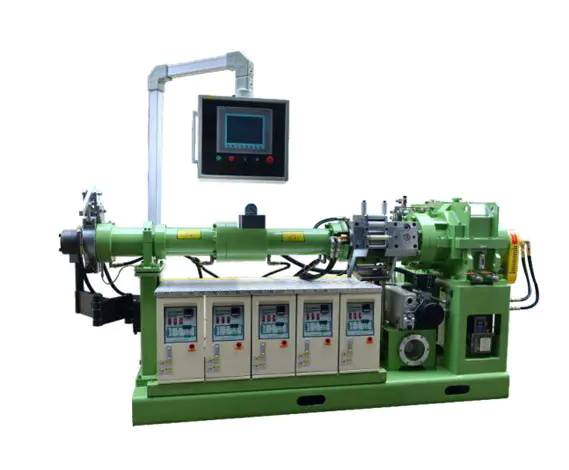

7th Generation Rubber Extruder(2015-2017)
7th Generation Rubber Extruder(2015-2017)

Applied with hand protection system at the feeding area on the basis of the 6th Generation Rubber Extruder, safety improved. Multistage filtration systemfor the vacuum system, effectively improve the service life of the vacuum pump.38CrMoAL alloy material integration body, no solder points, improving the coaxial degree of the fuselage assembly to prevent barrel scratching phenomenons, enhancing the barrel processing precision as well as adopting the nitriding treatment, the rubber screw is treated by spraying alloyservice, thus the service life is strongly improved. PLC system to storage the technical production data and HMI, more intelligent, more convenient.

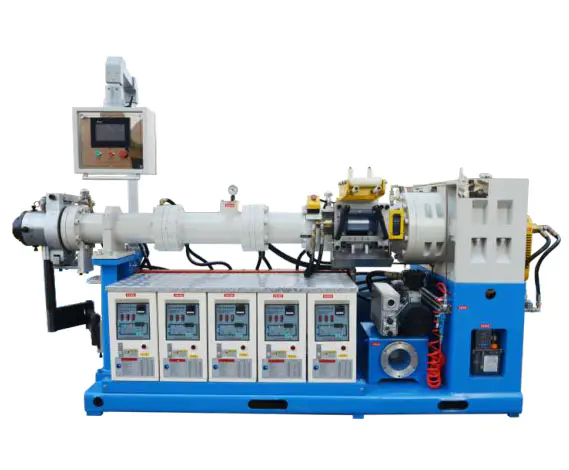

6th Generation Rubber Extruder (2014-2015)
6th Generation Rubber Extruder (2014-2015)

First grade filtering device for vacuum system has been applied on the basis of the 5th Generation Rubber Extruder. The 10mm extruder body frame steel plateis processed with one-time laser cutting , edge-forming technique.

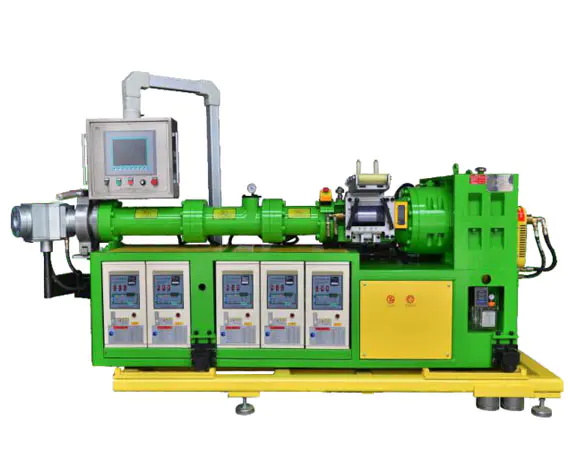

5th Generation Rubber Extruder(2011-2013)
5th Generation Rubber Extruder(2011-2013)

Firstly introduced with PLC system to storage the technical production data and HMI based on the 4th Generation Rubber Extruder.

4th Generation Rubber Extruder(2008-2010)
4th Generation Rubber Extruder(2008-2010)

Applied with Modular temperature control system, temperature control accuracy is ±1℃, Extruder is applied with helical sleeve cooling system to make the temperature transmission more directly to ensure the rubber does not get over-cured under high temperature and continuously working process, improving extrusion stability.

3rd Generation Rubber Extruder (2005-2007)
3rd Generation Rubber Extruder (2005-2007)

Applied with Modular temperature control system, temperature control accuracy is±1℃, extruder is applied with perforated barrel for water circulations(the circulations is easy to clog when water quality is bad, and temperature control accuracy is dis-satisfactory). The transmission device at the feeding area adopts the automatic lubrication system.

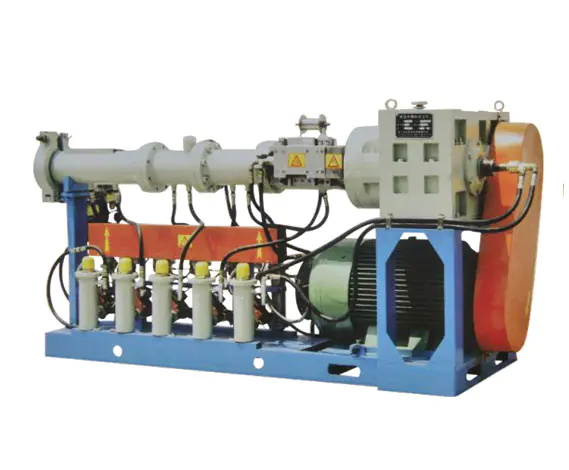

2nd Generation Rubber Extruder(2004-2005)
2nd Generation Rubber Extruder(2004-2005)

Improved the thermostatic device on the 1st generation , temperature control accuracy is ±2℃, extruder is applied with perforated barrel for watercirculations(the circulations is easy to clog when water quality is bad, and temperature control accuracy is dis- satisfactory).

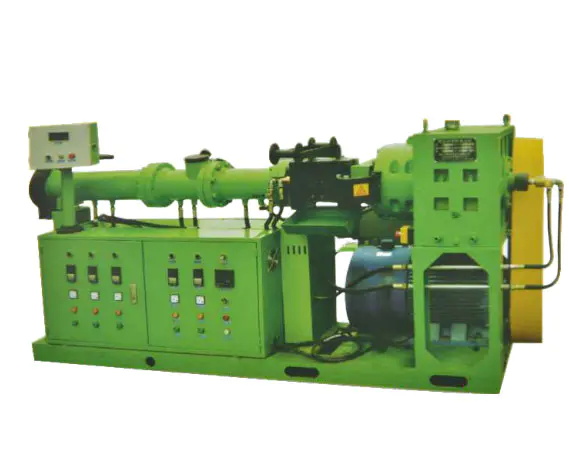

1st Generation Rubber Extruder(1998-2003)
1st Generation Rubber Extruder(1998-2003)

Simple configuration with ordinary heating device, temperature control accuracy is ±3℃, extruder is applied with perforated barrel for water circulations(the circulations is easy to clog when water quality is bad, and temperature control accuracy is dis-satisfactory).
