Rubber Hose Production Line Maker

Operation Of Rubber Hose Production Line

The operation of a rubber hose production line typically involves several steps, including:

Material preparation: The first step is to prepare the raw materials required for the production of rubber hoses, such as rubber compounds, fabric, and wire reinforcement. These materials are mixed together in the correct proportions to form a rubber compound.

Extrusion: The rubber compound is fed into an extruder machine, which uses heat and pressure to force the material through a die to form the desired shape of the hose.

Curing: The extruded hose is then cured in an oven or autoclave, which applies heat and pressure to set the shape of the hose and cure the rubber compound.

Cutting and testing: After curing, the hose is cut to the desired length and subjected to various tests, such as pressure testing and visual inspection, to ensure that it meets the required quality standards.

Packaging and shipping: Once the hose has passed all quality control checks, it is packaged and prepared for shipping to customers.

During the operation of a rubber hose production line, it is important to monitor the processing parameters, such as temperature, pressure, and speed, to ensure that the extrusion and curing processes are carried out correctly. Regular maintenance and calibration of equipment are also important to ensure that the production line operates efficiently and effectively.

In addition, quality control checks should be performed throughout the production process to detect any defects or inconsistencies in the hoses and ensure that they meet the required quality standards. This can help prevent problems downstream in the production process and ensure customer satisfaction with the final product.

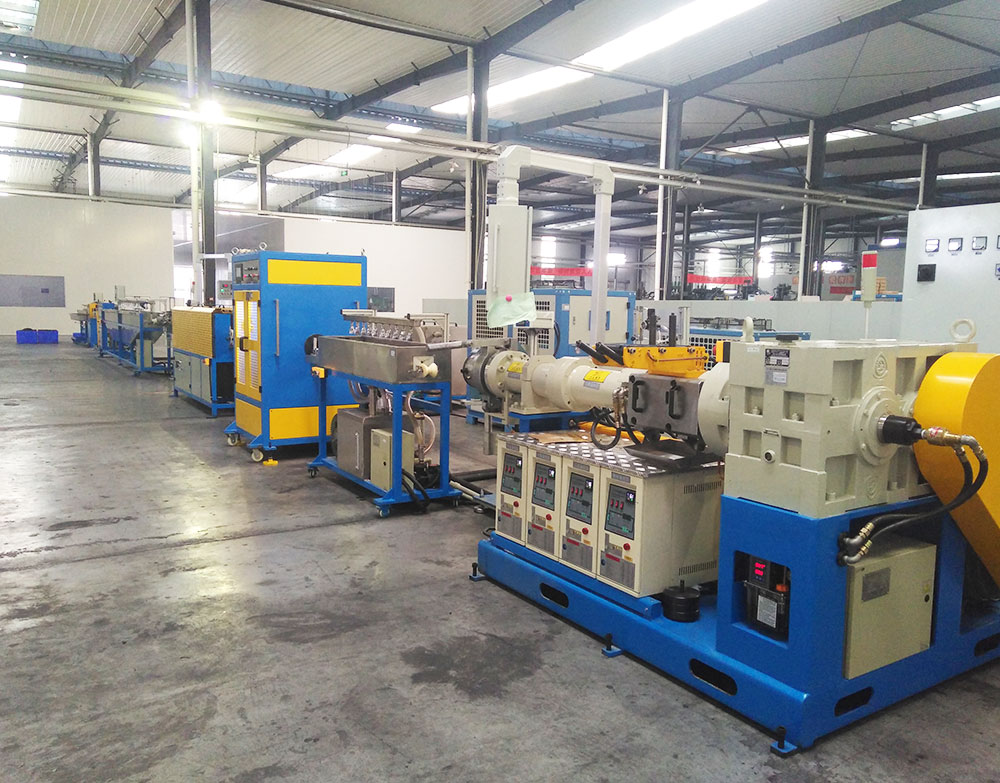

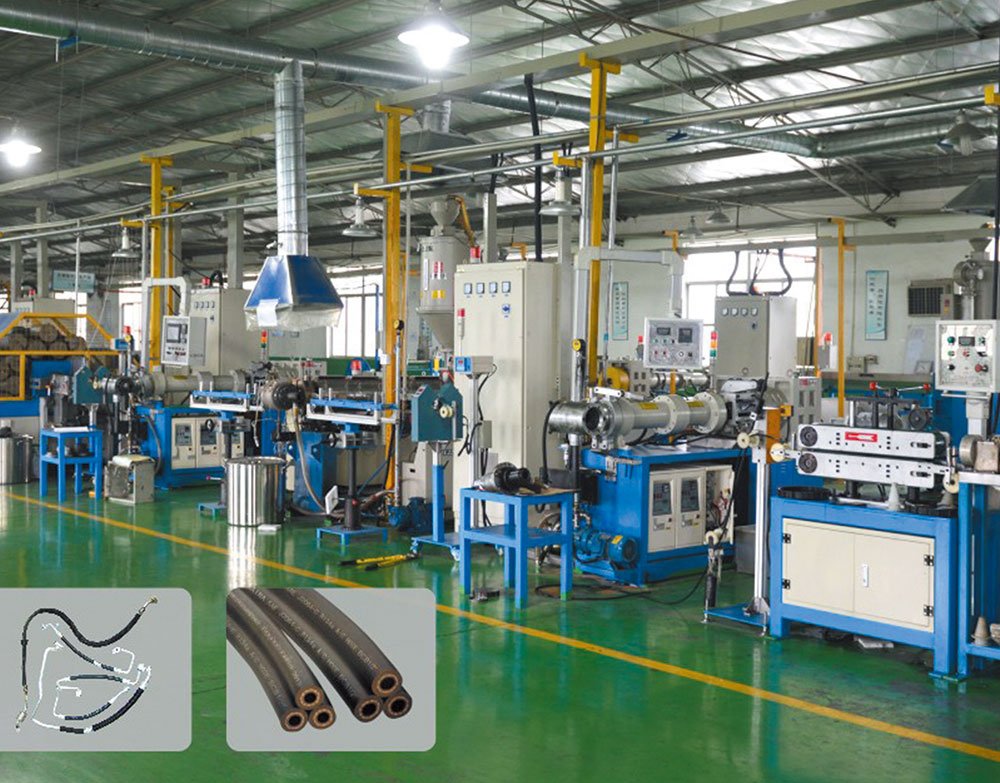

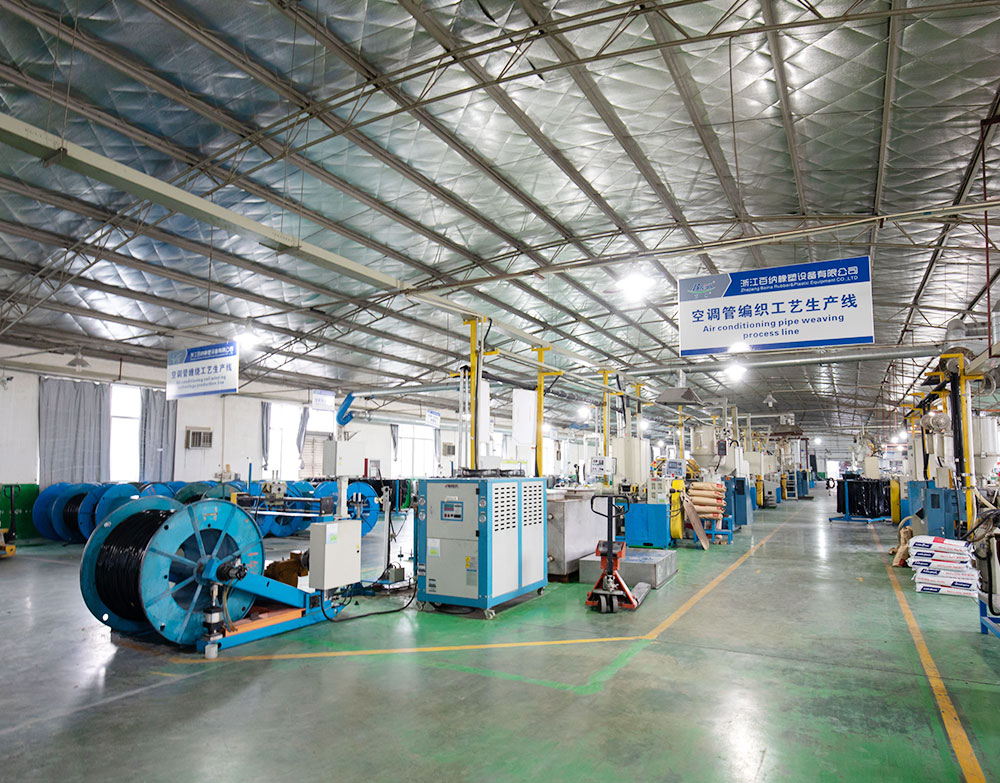

Common Configuration Of Rubber Hose Production Line

The configuration of a rubber hose production line can vary depending on the specific requirements of the product being manufactured. However, a typical rubber hose production line may include the following components:

Rubber mixing machine: This machine is used to mix raw materials, such as rubber compounds, fabric, and wire reinforcement, to form a homogeneous rubber compound.

Extruder: The rubber compound is then fed into an extruder, which uses heat and pressure to force the material through a die to form the desired shape of the hose.

Cooling tank: After extrusion, the hose is passed through a cooling tank, which cools the rubber and sets the shape of the hose.

Fabric braiding machine: Some hoses may require a fabric reinforcement layer, which is added by a fabric braiding machine.

Wire braiding machine: Some hoses may require a wire reinforcement layer, which is added by a wire braiding machine.

Curing oven/autoclave: The extruded and reinforced hose is then cured in an oven or autoclave, which applies heat and pressure to set the shape of the hose and cure the rubber compound.

Cutting machine: Once cured, the hose is cut to the desired length by a cutting machine.

Testing equipment: Various tests, such as pressure testing and visual inspection, are carried out to ensure that the hose meets the required quality standards.

Packaging machine: The finished hoses are then packaged and prepared for shipping to customers.

In addition to these components, a rubber hose production line may include various auxiliary equipment, such as conveyor belts, storage tanks, and material handling equipment, to ensure that the production process runs smoothly and efficiently.
