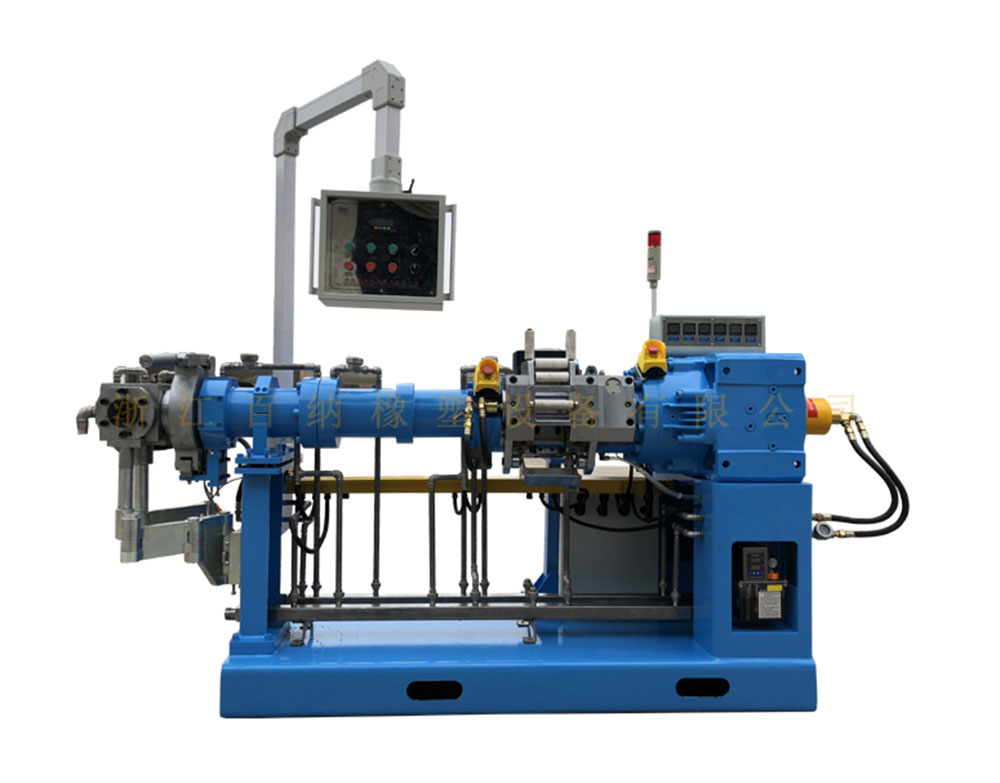

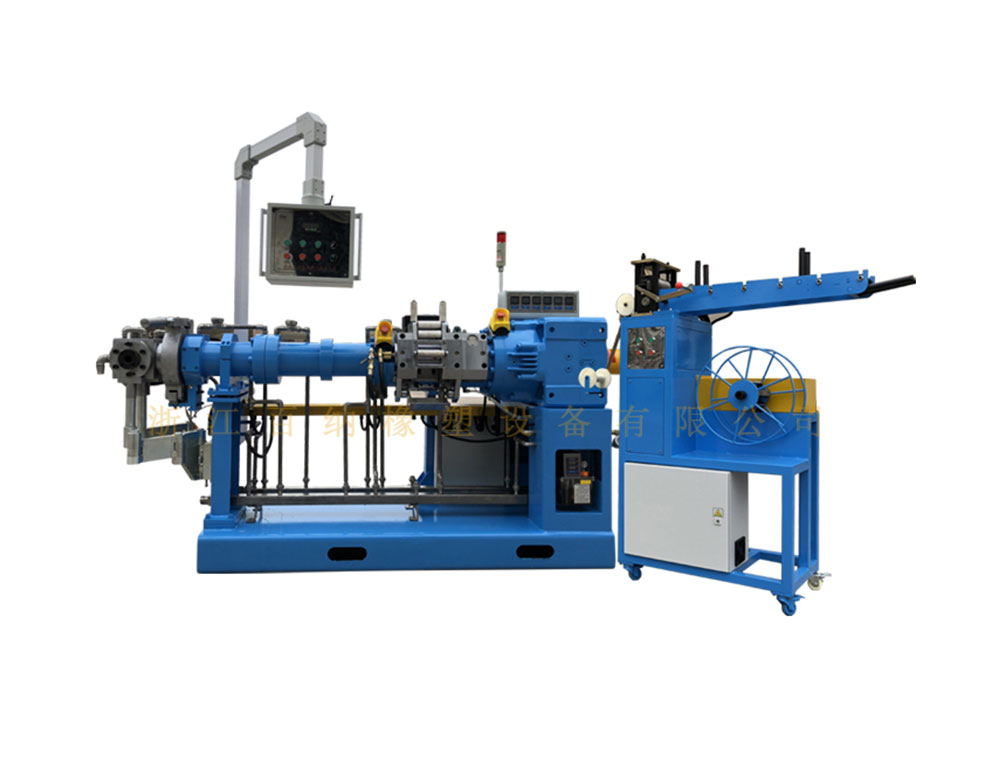

1.Main specifications



Unit type

BNE90-01-00



Exhaust type

German Vacuum air pump, vents (with vacuum blockage)



regulatory loop

Adjusting ranges (0~45mm) to ensure different products from leaking from the venting hole



Max extrusion pressure

35MPa



Central height

1100mm



Power supply

3 phase 5 line 380V 50HZ



Total power

75KW



Water supply source

Water temperature≤30℃、0.2Mpa≤water pressure≤0.4Mpa(PH=6~8 Water does not contain a large amount of calcium, silica, salt, iron, etc.)



2.Screw(standard exhaust type screw*1PC)



Screw diameter

¢90 C9(-0.17~-0.257)



L/D

20:1



Screw material

Japan SM645



Nitriding treatment

(δ=0.4~0.7)



hardness

HV800~900



Max RPM

60rpm MAX



Water circulation

The central part of the screw has a circulating channel and a rotary joint.



3.Barrel



Extrusion section

CYC1 spiral water circulating



Plasticized exhaust section

CYC2 spiral water circulating



Feeding section

CYC3 water circulating



Water pressure test of cooling system

20(MPa)X1H



Inner wall material

38CrMoAL



Nitriding treatment

δ=0.4~0.7



hardness

HV800~900



lining

Centrifugal casting of the inner wall of the lining of the extrusion section



hardness

HRC55~65



4.Feeding roller



Structure

warm water circulation and rotary joint



Material

38CrMoAL



Nitriding treatment

δ=0.4~0.7



hardness

HV800~900



diameter

¢136



Max RPM

40rpm MAX



5.Gearing



Screw drive motor

55KW  AC motor (frequency control)



AC motor brand

Siemens



Screw drive motor Frequency converter

Siemens



6.Screw reducer



Reducer

Hardened reducer,China(Jiangyin gear box manufacturing Co., Ltd.)



reduction ratio

25/1



Oil supply mode

Active oil supply for gear pump



Driving mode

Connection mode of skin coupling with main motor



Oil cooling method

Heat exchanger circulating heat transfer mode



7.Vacuum



Pumping speed

40m³/h



ultimate pressure

<1mbar



Motor power

1.5KW



Vacuum meter

Y60 -0.1~0Mp



8.Pressure detection device



Pressure sensor

Dynisco,U.S



Pressure controller

N80 Upper limit alarm output and DC0~10V output



9.LOCKING SYSTEM



10.TCU(5 sets outsourced)



Brand

奥德(aode) China



Total Power

15KW(3KW*5sets)



Working principle

Closed warm water cycle



number of circuits

5(head,CYC1,CYC2,CYC3,SC)



heat source

Stainless steel electric heating tube (5 groups), 3KW/ group



Heated water tank

Stainless steel



temperature control

Max water temperature 90℃



Thermo adjuster

Double PID regulation (heating / cooling)



Temp Accuracy

±1℃



PRODUCT DISPLAYProduct display

  • Flame retardant products

  • Combination products

  • Clamp wire products

PACKING

Order Guide:
1. Delivery date: 30-120 working days
2. Payment: T/T or L/C.
3. According to customer requirements, we provide a full range of equipment on time.
4. Responsible for training technicians and operators to operate and maintain equipment.
5. Responsible for installing and test all equipment.
6. Available formulation and long-term technical support.
7. Guarantee: Provide one-year warranty, lifetime tracking service and parts.
8. Metric units of the machine and all parameters of English.
9. Packing: Standard export wooden pallet.
