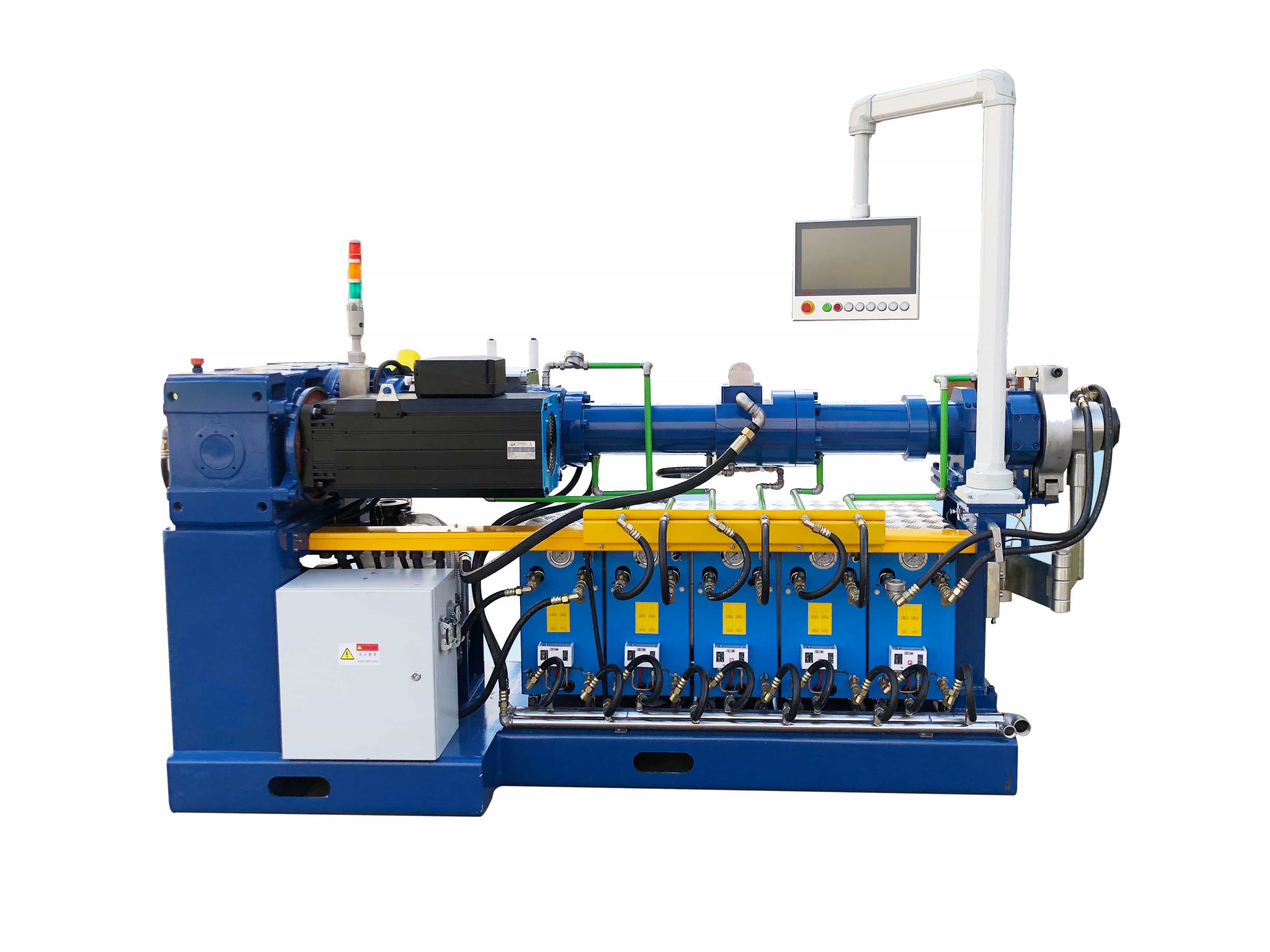

90mm16D/20D rubber extrude machine

Contact us Email Us: [email protected]
Product InformationProduct displayProduct PackagingAbout UsExhibition Information
  • The extruder screw, barrel, steel sleeve, press roll, side roll and other machine body parts have reached the same processing standard of German extruder, and the accuracy level has reached the international leading level.
  • SCREW Japanese material (SACM645): less deformation than domestic material, improve extrusion stability, and double the wear resistance of ordinary screw (38CrMoAL produced by Shanghai Baosteel)
  • Phahse Motor(Italy)：The output speed and torque are constant within the rated speed, so the speed of the motor is more stable than that of the original AC asynchronous motor, and the rubber products are more stable and the qualified rate is improved. Because the synchronous servo motor uses the magnetic cylinder as the electric field, this characteristic makes the motor energy-saving 10-20%
  • Feeding chamber and body Q345 low-carbon steel (good plasticity) machining center is used to form the fuselage in one body, punching type, high-pressure plug to block the water channel, with removable water channel cleaner, which has good water circulation effect. There are no welding points in the fuselage, no stress and deformation caused by welding, high processing accuracy, high coaxiality of fuselage assembly, reducing wear of screw steel sleeve, and prolonging service life of the equipment.
  • Vacuum area is processed by 38CrMoAl with no welding joint, which can eliminate the stress and deformation caused by welding and improve the assembling: "coaxiality". The fuselage adopts spiral water circulation, the vacuum adopts perforation, and the high pressure plug closes the cycle. Compared with other brands of extruders, the fuselage assembly accuracy and the high temperature control ability are improved.
  • Rossi Gearbox，Bearings are SKF brand, integrated casting box. Compared with domestic reducers, the transmission accuracy and efficiency are high, energy consumption is saved, noise is low, and service life is long.





Item

￠90mmcold feed rubber extrude machine

1

Unit type

BNE90-01-00

2

Application

Rubber extrusion mixing and plasticization, and extrude certain size of products in accordance with the machine head

3

External dimensions

3200×1200×1620(LXWXH)

4

Extrusion system

5

The feeding way

Side rolls transmission power through the screw, active feeding, with broken material alarm

6

Feeding structure

Side pressure roller gear and the screw the gear meshing transmission with automatic lubricating device.

7

Screw material

38GrMoAcA

8

Screw hardness

HRC65-68

9

hardness of steel sleeve

HRC65-70

10

Nitriding depth

0.4—0.7mm

11

Screw structure

Transfer screw

12

Pressure control

With the pressure sensor, pressure protection value 0-35MPA adjustable,also with a temperature sensor

13

Pressure control

With the pressure sensor, pressure protection value 0-35MPA adjustable,also with a temperature sensor

14

L/D

20:1

15

Screw diameter

90mm

16

Screw Speed

 0-55r/min

17

Max output

About 320kg/h

18

Temperature control system

19

The heating section number/power

 3kw×5

20

Cooling section

1 section (side rolls)

21

Vacuum pump power

1.5KW

22

Temperature control

Automatic control heating, cooling by electromagnetic valve

23

Circulating pump brand

Aulank

24

Cooling water pressure

 0.15-2KG/C㎡

25

The temperature control accuracy

±1℃

26

Drive system

27

Connection between the screw and the gear box

spline connection

28

Drive of the motor and the reducer

Belt driven

29

Hardened reducer model

ZLYJ250-20-1

30

Motor power

55KW

31

The total power

75KW

32

speed regulation

Frequency conversion

PRODUCT DISPLAYProduct display

  • Flame retardant products

  • Combination products

  • Clamp wire products

PACKING

Order Guide:
1. Delivery date: 30-120 working days
2. Payment: T/T or L/C.
3. According to customer requirements, we provide a full range of equipment on time.
4. Responsible for training technicians and operators to operate and maintain equipment.
5. Responsible for installing and test all equipment.
6. Available formulation and long-term technical support.
7. Guarantee: Provide one-year warranty, lifetime tracking service and parts.
8. Metric units of the machine and all parameters of English.
9. Packing: Standard export wooden pallet.
